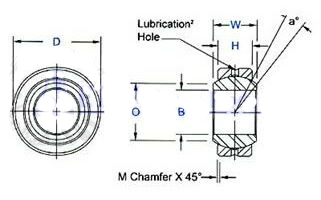

AETNA PART NO. | Weight (Pounds) Each | B | D | H | W | O | M | Ball Dia. | a | Ultimate Radial Load Capacity (Pounds) | |
---|---|---|---|---|---|---|---|---|---|---|---|
COM3 | COM3T | .014 | .1995/.1915 | .5625 | .218 | .281 | .293 | .015 | .406 | 11.0 | 3250 |
COM4 | COM4T | .022 | .2495/.2515 | .6562 | .250 | .343 | .364 | .022 | .500 | 13.5 | 4950 |
COM5 | COM5T | .030 | .3120/.3140 | .7500 | .281 | .375 | .419 | .032 | .562 | 12.0 | 6475 |
COM6 | COM6T | .038 | .3745/.3765 | .8125 | .312 | .406 | .516 | .032 | .656 | 10.0 | 8400 |
COM7 | COM7T | .048 | .4370/.4390 | .9062 | .343 | .437 | .569 | .032 | .687 | 13.0 | 10200 |
COM8 | COM8T | .065 | .4995/.5015 | 1.000 | .390 | .500 | .640 | .032 | .781 | 9.5 | 13250 |
COM10 | COM10T | .110 | .6245/.6265 | 1.1875 | .500 | .625 | .780 | .032 | .9687 | 8.5 | 21280 |
COM12 | COM12T | .204 | .7595/.7515 | 1.4375 | .593 | .750 | .920 | .044 | 1.187 | 9.0 | 31920 |
COM14 | COM14T | .263 | .8745/.8765 | 1.5625 | .703 | .875 | .980 | .044 | 1.312 | 9.5 | 41960 |
COM16 | COM16T | .386 | .9995/1.0015 | 1.7500 | .797 | 1.000 | 1.118 | .044 | 1.500 | 10.0 | 55200 |

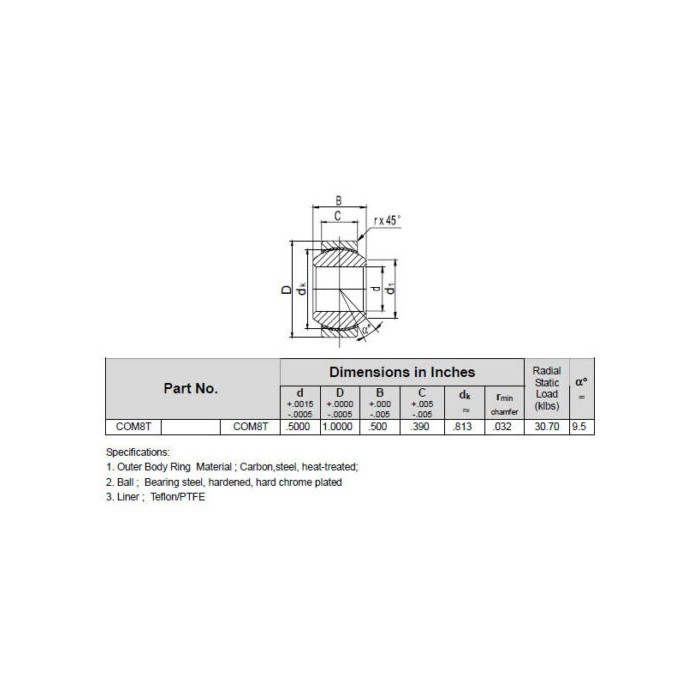

- The COM & COM-T Series Metal To Metal Spherical Bearing
- Spherical ball is made from 52100 bearing steel, precision ground, surface hardened for wear resistance and hard chrome plated for corrosion resistance.
- Race is made from 1045 steel and oil coated
- The COM has Lubricating Holes and Grooves Located on the Inner & Outer Races
- The COM-T incorporates a permanently bonded PTFE liner to the inner diameter of the race.
- Add suffix "T" to the part number i.e. COM10T
- COM-T has no lubrication holes or grooves in the race
If you are going to import com t bearing in stock or you want to check the price with one China com t bearing manufacturer, supplier and factory, please feel free to contact Shanghai Yousen bearing Co.,ltd.
