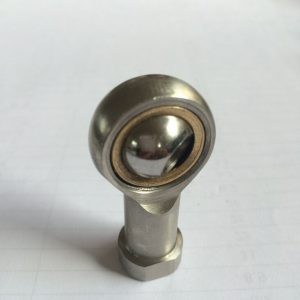

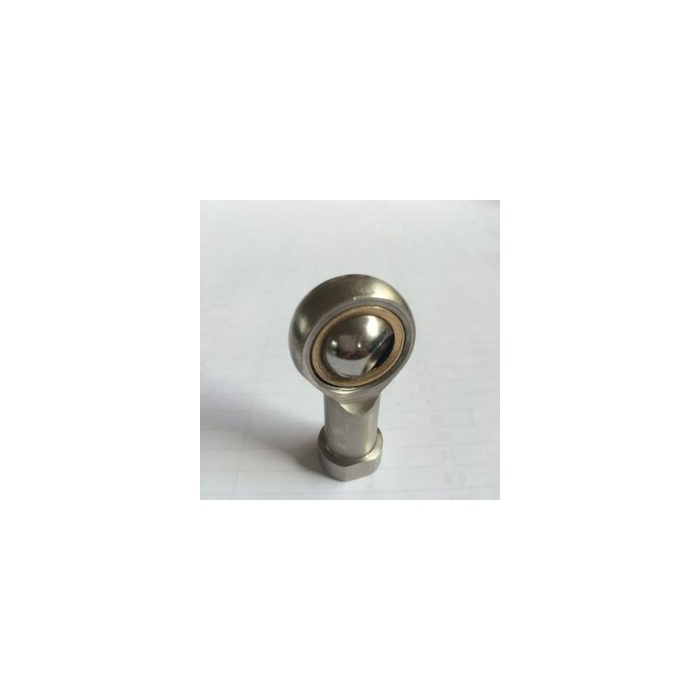

SI8T/K GIKFR8PW Female Right Hand Maintenance Free Rod End Bearing

SI8T/K GIKFR8PW Female Right Hand Maintenance Free Rod End Bearing

SI8T/K GIKFR8PW Female Right Hand Maintenance Free Rod End Bearing

Features

  • Self-Lubrication

  • Housing:  carbon steel and white zinc plated

  • Steel Ball:  52100 chrome steel, precision ground hardened and chrome plated

  • Liner:  PTFE-Strong & flexible bronze mesh spread with fluorine resin

  • Race:  Bronze



More details


SI..TK series rod ends bearings are made up of a maintenance-free radial spherical plain bearing G..PW 2RS and rod body,with female thread.

Features

• Sliding contact surface: steel/PTFE

• Lubricating: Maintenance-free

• Housing: carbon steel and zinc plated

• Inner ring: chrome steel,hardened,chrome-plated

• Race: brass

• Liner: PTFE


ITEM Dimension(mm) Weight
  d d3 B C1 L3 W d2 h1 L4 L5 d4 d5 dk a kg
    6H     min                 ≈
SI5T/K 5 M5x0.8 8 6 10 9 18 27 36 4 8.5 11 11.11 13 0.016
SI6T/K 6 M6x1.0 9 6.75 12 11 20 30 40 5 10 13 12.7 13 0.022
SI8T/K 8 M8x1.25 12 9 16 14 24 36 48 5 12.5 16 15.875 14 0.047
SI10T/K 10 M10x1.5 14 10.5 20 17 28 43 57 6.5 15 19 19.05 13 0.077
SI10-1T/K 10 M10x1.25 14 10.5 20 17 28 43 57 6.5 15 19 19.05 13 0.077
SI12T/K 12 M12x1.75 16 12 22 19 32 50 66 6.5 17.5 22 22.225 13 0.1
SI12-1T/K 12 M12x1.25 16 12 22 19 32 50 66 6.5 17.5 22 22.225 13 0.1
SI14T/K 14 M14x2.0 19 13.5 25 22 36 57 75 8 20 25 25.4 16 0.16
SI14-1T/K 14 M14x1.5 19 13.5 25 22 36 57 75 8 20 25 25.4 16 0.16
SI16T/K 16 M16x2.0 21 15 28 22 42 64 85 8 22 27 28.575 15 0.22
SI16-1T/K 16 M16x1.5 21 15 28 22 42 64 85 8 22 27
