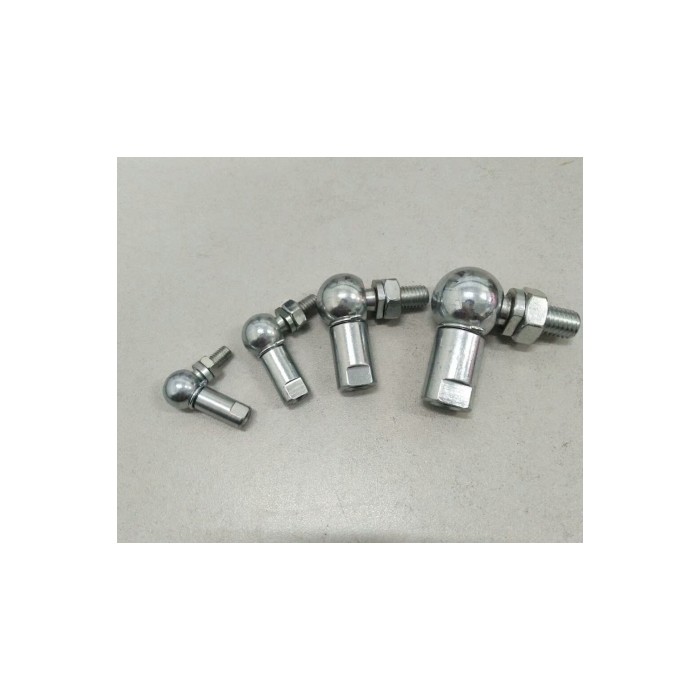

SQP10S 16mm Diameter Ball Joint Rod End Bearing With M10x1.5 Thread Ball Rod End

SQP10S 16mm Diameter Ball Joint Rod End Bearing With M10x1.5 Thread Ball Rod End

SQP10S M10 Angle Ball Joint Rod End M10x1.5 Thread Ball Joint Rod End Bearing

Description
  • Ball Housing: carbon steel and white zinc plated
  • Ball Pin: 45# carbon steel, ASTM 1045, JIS 45C
  • Circlip: spring steel

Features
  • Thread: M10x1.5 thread
  • Net Weight: 0.10kg
  • Lubrication: with grease
  • consist of a ball socket DIN 71805 and a ball shank DIN 71803
  • Performance: high hardness,reliable and durable

More details


SQP10S M10 Angle Ball Joint Rod End M10x1.5 Thread Ball Joint Rod End Bearing

Description
  • Ball Housing: carbon steel and white zinc plated
  • Ball Pin: 45# carbon steel, ASTM 1045, JIS 45C
  • Circlip: spring steel

Features
  • Thread: M10x1.5 thread
  • Net Weight: 0.10kg
  • Lubrication: with grease
  • consist of a ball socket DIN 71805 and a ball shank DIN 71803
  • Performance: high hardness,reliable and durable



  Part No.

 Dimensions      mm

Load ratings

Weight
Right hand Left hand Q

M1

6H

M2

6g

 b c d g h H

k

min

 SW SR KN kg
SQP 5 S SQPL 5 S 8 M5x0.8 M5x0.8 9 10 8 8 22 0.7 10.2 7 6.4 15.2 0.014
SQP 6 S SQPL 6 S  10 M6x1.0 M6x1.0 11 12.5 10 10 25 0.7 11.5 8 7.4 25.2 0.024
SQP 8 S SQPL 8 S  13 M8x1.25 M8x1.25 13 16.5 13 13 30 1.16 14 11 9.65 53.1 0.053
SQ 10 S SQPL 10 S 16 M10x1.5 M10x1.5 16 20 16 16 35 1.16 15.5 13 12 103.8 0.097
SQ 12 S SQPL 12 S 16 M12x1.75 M12x1.75 16 20 16 16 35 1.16 15.5 13 12 103.8 0.097
SQ 14 S SQPL 14 S 22 M14x2.0 M14x2.0 20 27 19 22 45 1.5 21.5 17 15 220.9 0.218
SQ 14-1 S SQPL 14-1 S 22 M14x1.5 M14x1.5 20 27 19 22 45 1.5 21.5 17 15 220.9 0.218
