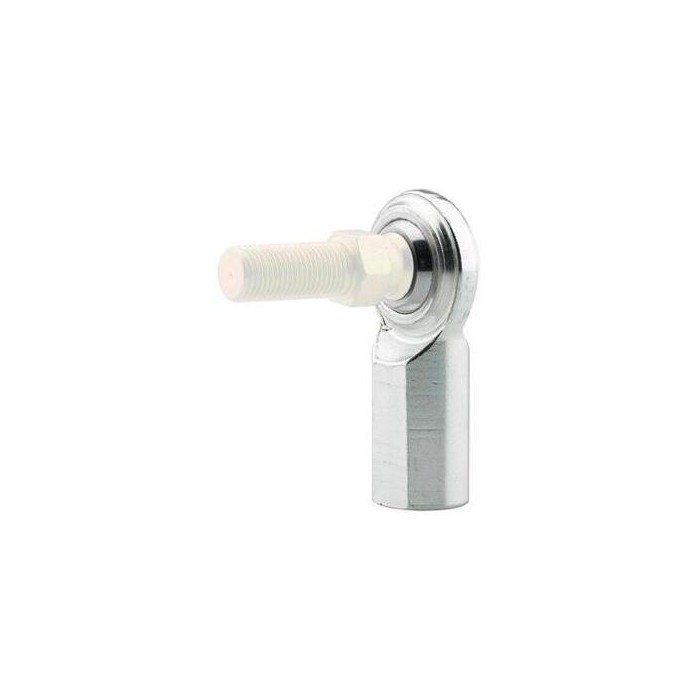

CF6Y CFL6Y CF6YS rod end with stud for street rod application



CF..Y Rod End Bearing

 2-piece rod end,metal to metal.

Features



• sliding contact surface: steel / steel

requiring maintenance

• housing: carbon steel and zine plated

• inner ring

   —bearing steel

   —heat treated HRC 57-61

   —hard chrome plated

• stud

      —carbon steel and zinc plated

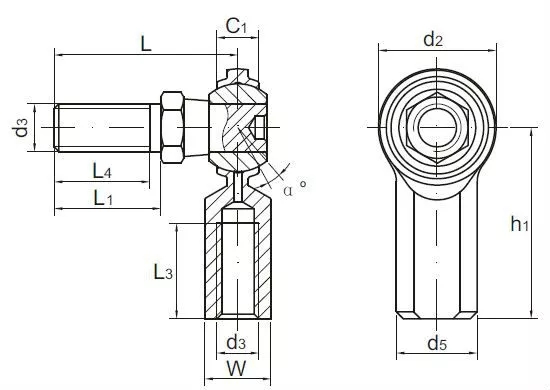

ITEM Dimension  (mm) Weight
Right hand  Lift hand  d3 W C1 d2 h1 L3 L L1 L4 d5 W a kg
    UNF-2B         min           ≈
CF 3 Y* CFL 3 Y* 10-32 7.92 5.94 15.88 26.97 12.7 25.4 12.7 11.1 10.31 7.92 10 0.023
CF 4 Y CFL 4 Y 1/4-28 9.53 6.35 19.05 33.32 17.45 26.19 14.27 12.7 11.91 9.53 13.5 0.027
CF 5 Y CFL 5 Y 5/16-24 11.1 7.92 22.23 34.93 17.45 30.96 17.45 15.06 12.7 11.1 11 0.05
CF 6 Y CFL 6 Y 3/8-24 14.27 9.12 25.4 41.28 20.62 39.67 23.01 20.62 17.45 14.27 11 0.077
CF 7 Y CFL 7 Y 7/16-20 15.88 10.31 28.58 46.02 23.8 44.45 26.97 23.8 19.05 15.88 10.5 0.122
CF 8 Y CFL 8 Y 1/2-20 19.05 11.5 33.32 53.98 26.97 50.8 28.58 25.4 22.23 19.05 10 0.181
CF 10 Y CFL 10 Y 5/8-18 22.23 12.29 38.1 63.5 34.93 63.5 38.1 34.93 25.4 22.23 13 0.308
CF 12 Y CFL 12 Y 3/4-16 25.4 15.06 44.45 73.03 39.67 76.2 46.02 41.28 28.58 25.4 12 0.504

—Add "S" for grease nipple,example:CF 6 YS,CFL 6 YS.
