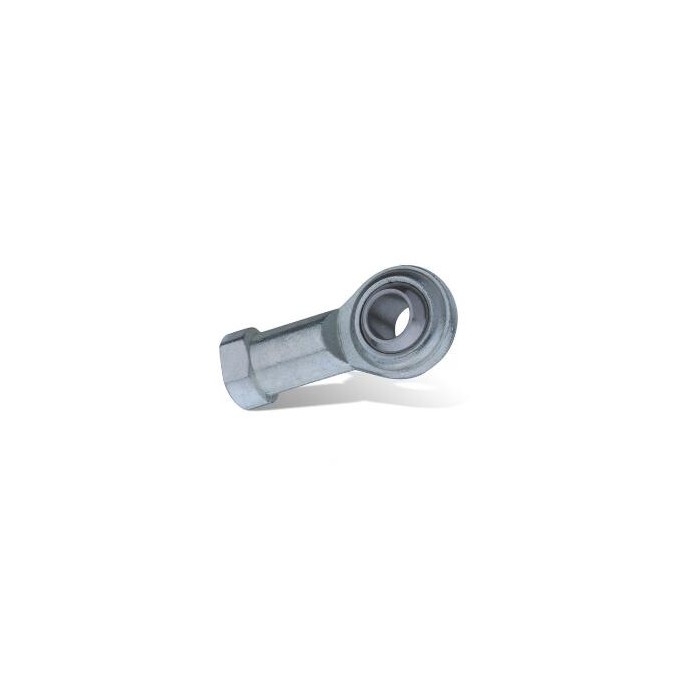

NHS Series-Female Type rod end

SELF-LUBRICATING TYPE rod end
Highly wear-resisting PTFE liner. Well made with low clearance. Suitable for precision applications.
MATERIALS
‧BODY:Medium Carbon Steel S35C, Forged, Zinc Coated(Cr3+)
‧BALL:Bearing Steel SUJ-2, Heat Treated HRC 58°±2, Hard Chrome Plated
‧LINER:PTFE-Strong & flexible bronze mesh spread with fluorine resin

More details


NHS Series-Female Type rod end

SELF-LUBRICATING TYPE rod end
Highly wear-resisting PTFE liner. Well made with low clearance. Suitable for precision applications.
MATERIALS
‧BODY:Medium Carbon Steel S35C, Forged, Zinc Coated(Cr3+)
‧BALL:Bearing Steel SUJ-2, Heat Treated HRC 58°±2, Hard Chrome Plated
‧LINER:PTFE-Strong & flexible bronze mesh spread with fluorine resin

DIMENSIONS IN METRIC *±0.5~1.0 mm

型 號 B W O H D F A J K L P A/F Thread 旋角 球徑
Ball Dia.
O		 徑向荷重
Radial S. load
(kgf)		 重量
Weight (g)
Model No. H7 +0 -0.1 ＊ * ＊ ＊ +2 -0 ＊ ＊ ＊ ＊ +0 -0.2 S α
NHS 3 R/L 3 6 7.4 4.5 14 21 10 6.5 8 3 - 7 3x0.5 13 9.30 180 6.5
NHS 4 R/L 4 7 7.6 5.3 14 24 12 8 9.5 4 3 8 4x0.7 13 10.32 220 10
NHS 5 R/L 5 8 7.7 5.5 17 27 12 9 11 4 3 9 5x0.8 13 11.11 390 16
NHS 6 R/L 6 9 8.9 6 19 30 14 10 13 5 3.3 11 6x1.0 13 12.70 500 24
NHS 8 RF/LF
NHS 8 R/L		 8 12 10.4 8 23.5 36 17 13 16 5 4.5 14 8x1.0 8x1.25 13 15.88 740 41
NHS 10 RF/LF
NHS 10 R/L		 10 14 12.9 10 27 45 21 15 19 7 5.5 17 10x1.25 10x1.5 13 19.05 940 70
NHS 12 RF/LF
NHS 12 R/L		 12 16 15.4 11 32 50 24 18 22 7 6 19 12x1.25 12x1.75 13 22.23 1,100 104
NHS 14 RF/LF
NHS 14 R/L		 14 19 16.8 12 36 57 27 20 25 8 7 21 14x1.5 14x2.0 15 25.40 1,520 158
NHS 16 RF/LF
NHS 16 R/L		 16 21 19.3 13 39 64 33 22 27 8 7.5 22 16x1.5 16x2.0 15 28.58 2,020 200
NHS 18 R/L 18 23 21.8 15 44 71 36 25 31 10 8.5 27 18x1.5 15 31.75 2,520 288
NHS 20 R/L 20 25 24.3 16 47 77 40 28 34 10 9 30 20x1.5 15 34.93 2,780 372
NHS 22 R/L 22 28 25.9 18 50 84 43 30 37 12 10 32 22x1.5 15 38.10 3,590 475
NHS 25 R/L 25 31 29.6 20 56 94 48 34 42 12 12 36 24x2.0 15 42.85 5,430 680
NHS 30 R/L 30 37 34.8 24 67 113 58 40 50 15 15 41 30x2.0 15 50.80 6,910 1,020


DIMENSIONS IN INCHES *±0.02~0.04 inches

型 號 B W O H D F A J K L P A/F Thread 旋角 球徑
Ball Dia.
O		 徑向荷重
Radial S. load
(kgf)		 重量
Weight (g)
Model No. H7 +0-0.004 ＊ * ＊ ＊ +0.080-0 ＊ ＊ ＊ ＊ +0-0.080 S α
NHS 1/4 R/L 0.2500 0.354 0.350 0.236 0.748 1.181 0.551 0.394 0.512 0.197 0.130 0.433 UNF1/4-28 13 0.500 1,100 0.05
NHS 5/16 R/L 0.3125 0.472 0.409 0.315 0.925 1.417 0.669 0.512 0.630 0.197 0.177 0.551 UNF 5/16-24 13 0.625 1,630 0.09
NHS 3/8 R/L 0.3750 0.551 0.508 0.394 1.063 1.772 0.827 0.591 0.748 0.276 0.217 0.669 UNF 3/8-24 13 0.750 2,070 0.15
NHS 7/16 R/L 0.4375 0.551 0.508 0.394 1.063 1.772 0.827 0.591 0.748 0.276 0.217 0.669 UNF 7/16-20 13 0.750 2,070 0.15
NHS 1/2 R/L 0.5000 0.630 0.606 0.433 1.260 1.969 0.945 0.709 0.866 0.276 0.236 0.748 UNF 1/2-20 13 0.875 2,430 0.23
NHS 5/8 R/L 0.6250 0.827 0.760 0.512 1.535 2.520 1.299 0.866 1.063 0.315 0.295 0.866 UNF 5/8-18 15 1.125 4,450 0.44
NHS 3/4 R/L 0.7500 0.906 0.858 0.591 1.732 2.795 1.417 0.984 1.220 0.394 0.335 1.063 UNF 3/4-16 15 1.250 6,130 0.63
NHS 1 R/L 1 1.220 1.165 0.787 2.205 3.701 1.890 1.339 1.654 0.472 0.472 1.417 UNF 1-12 15 1.687 11,970 1.50
