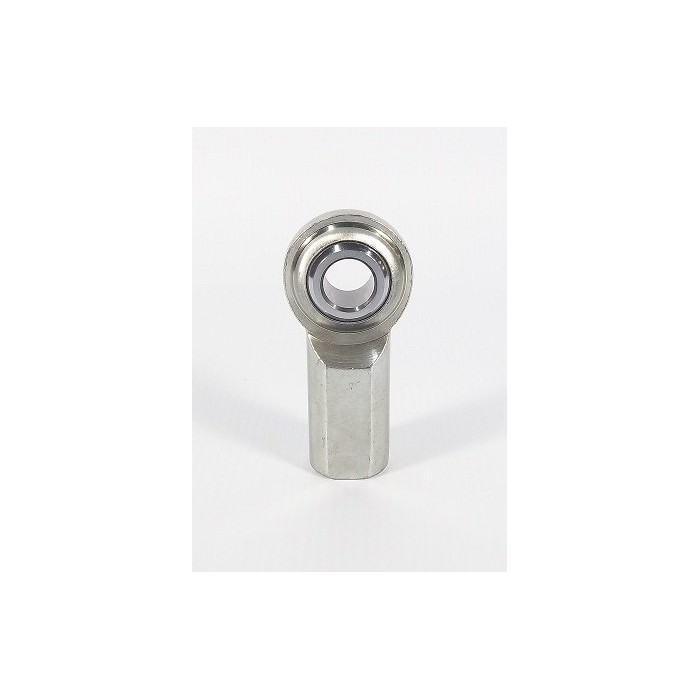

Inch size female Rod end CF CW

View full size

High Quality Inch size 2-Piece female Rod End-CF (CW,CG)
Rod end Inch size CF CW,High Quality,rod end, plain bearings,CF3 CF4 CF5 CF6 CF7 CF8 CF10 CF12
Rod end Inch size CF CW 1.Professional manufacturer 2.wide products range 3.Reliable quality 4.Wholesale
Rod end, Inch size requiring maintenance, CF (CW, CG), Please read PDF catalog for exact selection. Material Ball: Chromium Steel GCr15, heat treated, hard chrome plated Body: Low carbon steel, heat treated, nickle plated Liner: PTFE available, add "T" as suffix Stainless steel available, Metric size add "M " as CF-M

More details

More info

High Quality Inch size 2-Piece female Rod End-CF (CW,CG)
Rod end Inch size CF CW,rod end, plain bearings,CF3 CF4 CF5 CF6 CF7 CF8 CF10 CF12
High Quality Rod end Inch size CF CW

1.Professional manufacturer

2.wide products range

3.Reliable quality

4.Wholesale
High Quality Rod end, Inch size requiring maintenance, CF (CW, CG), Please read PDF catalog for exact selection. Material Ball: Chromium Steel GCr15, heat treated, hard chrome plated Body: Low carbon steel, heat treated, nickle plated Liner: PTFE available, add "T" as suffix Stainless steel available, Metric size add "M " as CF-M

Part No.				Dimension (mm)					Mass
Right	Left	AURORA		B	D	W	T	BALL	(Lbs)
				0.0025	0.01	0	0.005	Dia
				-0.0005	-0.01	-0.005	-0.005
CF3	CFL3	CW-3	CG-3	0.19	0.625	0.312	0.234	0.437	0.04
CF3T	CFL3T	CW-3T	CG-3T
CF4	CFL4	CW-4	CG-4	0.25	0.75	0.375	0.25	0.5	0.05
CF4T	CFL4T	CW4T	CG-4T
CF5	CFL5	CW-5	CG-5	0.3125	0.875	0.437	0.312	0.625	0.08
CF5T	CFL5T	CW-5T	CG-5T
CF6	CFL6	CW-6	CG-6	0.375	1	0.5	0.359	0.719	0.13
CF6T	CFL6T	CW-6T	CG-6T
CF7	CFL7	CW-7	CG-7	0.4375	1.13	0.562	0.406	0.812	0.18
CF7T	CFL7T	CW-7T	CG-7T
CF8	CFL8	CW-8	CG-8	0.5	1.31	0.625	0.453	0.937	0.29
CF8T	CFL8T	CW-8T	CG-8T
CF10	CFL10	CW-10	CG-10	0.625	1.5	0.75	0.484	1.125	0.43
CF10T	CFL10T	CW-10T	CG-10T
CF12	CFL12	CW-12	CG-12	0.75	1.75	0.875	0.593	1.312	0.65
CF12T	CFL12T	CW-12T	CG-12T

Rod end Inch size CF CW
