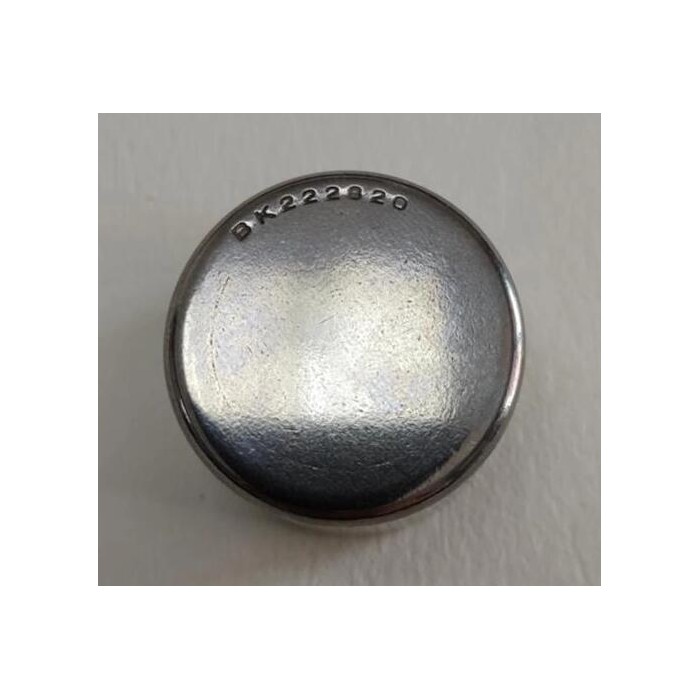

BK Closed Drawn Cup Needle Roller Bearing



Outer ring

1． material: ST12 low carbon steel

2． process: punching

3． heat treatment: carburize, high frequency temper

Cage

1. material: ST12 low carbon steel

2. process: punching

3. heat treatment: carburize, black coating

Needle roller

1. material: GCr15 chrome steel

2. process: grinding

3. HRc60-64heat treatment: quenching, HRC60-64



Shaft model Mass Dimensions     Shaft model Mass Dimensions
mm   g Fw D C     mm   g Fw D C
3 BK0306 1 3 6.5 6     20 BK2012 15.8 20 26 12
4 BK0408 2.1 4 8 8     BK2016 20.4 20 26 16
5 BK0509 2.1 5 9 9     BK2020 25 20 26 20
6 BK0609 2.6 6 10 9     22 BK2212 18 22 28 12
7 BK0709 2.9 7 11 9     BK2216 23 22 28 16
8 BK0808 3 8 12 8     25 BK2512 23 25 32 12
BK0810 3.4 8 12 10     BK2516 29 25 32 16
9 BK0910 4.3 9 13 10     BK2520 35 25 32 20
BK0912 4.9 9 13 12     BK2526 48 25 32 26
10 BK1010 4.2 10 14 10     BK2538 68 25 32 38
BK1012 5 10 14 12     28 BK2816 32 28 35 16
BK1015 6.2 10 14 15     BK2820 39 28 35 20
12 BK1210 5 12 16 10     30 BK3012 27 30 37 12
BK1212 9.5 12 18 12     BK3016 34 30 37 16
13 BK1312 10 13 19 12     BK3020 42 30 37 20
14 BK1412 10.7 14 20 12     BK3026 58 30 37 26
BK1416 13.9 14 20 16     BK3038 84 30 37 38
15 BK1512 11.5 15 21 12     35 BK3516 41 35 42 16
BK1516 17 15 21 16     BK3520 49 35 42 20
BK1522 20.8 15 21 22     40 BK4012 37 40 47 12
16 BK1612 12.3 16 22 12     BK4016 46 40 47 16
BK1616 16 16 22 16     BK4020 56 40 47 20
BK1622 24 16 22 22     45 BK4516 53 45 52 16
17 BK1712 13 17 23 12     BK4520 64 45 52 20
18 BK1812 14.3 18 24 12     50 BK5020 83 50 58 20
BK1816 18.6 18 24 16     BK5024 97 50 58 24
20 BK2010 13.5 20 26 10     55 BK5520 92 55 63 20



BK Closed Drawn Cup Needle Roller Bearing is punched by the alloy plate, with thin-walled outer ring, cage and Needle Roller. Mainly used in automobile, textile machinery, and motorcycle field.

Main characteristic

1. Shaft can be used as raceway

2. Small radial spatial structure

3. low cost, easy to assemble

4. Can carry high load

Structure sheet



Metric size

Inch size

Structure instruction

HK,TLA,TA

SCE,SCH,BA,BHA,JH

open

BK,TLAM,TAM

BCE,BCH,BAM,BHAM

closed

HK.RS;HK.2RS

SCE.PP,BA.PP

Open, with seal

BK.RS

BCE.P,BAM.P

closed, with single seal

FY,HN,YT

SN,YB

Open, with full complement flat needle roller

MFY.TTL

YBL

Closed, with full complement flat needle roller

F,FH

B,BH

Open, with full complement tip needle roller

MF

M,MH

Closed ,with full complement tip needle roller
