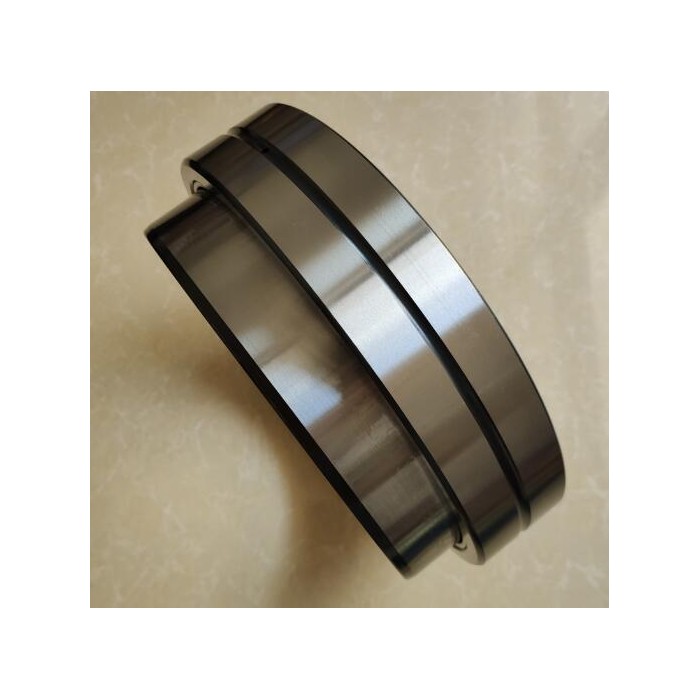

NA49 Entity Bushed Needle Roller Bearing
NA49 RNA49 Entity Bushed Needle Roller Bearing is assembled with chrome steel outer ring, Inner Ring, cage and Needle Roller.
This kind of bearing is the most widely in using. Mainly used in automobile, textile machine, printing machine, etc.
Main characteristic
1. low height of cross section, large load carry capacity, high hardness of outer ring and inner ring, big rigidness
2. compact and different structure
3. flexible fit
4. Big range of size
Inner ring, outer ring
1. material: GCr15 chrome steel
2. process: lathing, grinding
3. heat treatment: quenching (high temperature temper for special request)
Cage
1. material: ST12 low carbon steel
2. process: punching
3. heat treatment: carburization, black
Needle roller
1. material: GCr15 chrome steel
2. process: grinding
3. heat treatment: quenching, HRC60-64
d=12mm
D=24mm
B=13MM
mm | Without IR | g | Fw | D | C | mm | With IR | g | d | D | B | ||
14 | RNA 4900 | 16 | 14 | 22 | 13 | 10 | NA 4900 | 23 | 10 | 22 | 13 | ||
16 | RNA 4901 | 17 | 16 | 24 | 13 | 12 | NA 4901 | 26 | 12 | 24 | 13 | ||
20 | RNA 4902 | 21 | 20 | 28 | 13 | 15 | NA 4902 | 34 | 15 | 28 | 13 | ||
22 | RNA 4903 | 22 | 22 | 30 | 13 | 17 | NA 4903 | 37 | 17 | 30 | 13 | ||
25 | RNA 4904 | 52 | 25 | 37 | 17 | 20 | NA 4904 | 75.2 | 20 | 37 | 17 | ||
28 | RNA 49/22 | 50 | 28 | 39 | 17 | 22 | NA 49/22 | 80 | 22 | 39 | 17 | ||
30 | RNA 4905 | 61 | 30 | 42 | 17 | 25 | NA 4905 | 88 | 25 | 42 | 17 | ||
32 | RNA 49/28 | 73 | 32 | 45 | 17 | 28 | NA 49/28 | 97.7 | 28 | 45 | 17 | ||
35 | RNA 4906 | 69 | 35 | 47 | 17 | 30 | NA 4906 | 101 | 30 | 47 | 17 | ||
40 | RNA 49/32 | 89 | 40 | 52 | 20 | 32 | NA 49/32 | 158 | 32 | 52 | 20 | ||
42 | RNA 4907 | 107 | 42 | 55 | 20 | 35 | NA 4907 | 170 | 35 | 55 | 20 | ||
48 | RNA 4908 | 140 | 48 | 62 | 22 | 40 | NA 4908 | 230 | 40 | 62 | 22 | ||
52 | RNA 4909 | 182 | 52 | 68 | 22 | 45 | NA 4909 | 271 | 45 | 68 | 22 | ||
58 | RNA 4910 | 163 | 58 | 72 | 22 | 50 | NA 4910 | 274 | 50 | 72 | 22 | ||
63 | RNA 4911 | 255 | 63 | 80 | 25 | 55 | NA 4911 | 393 | 55 | 80 | 25 | ||
68 | RNA 4912 | 275 | 68 | 85 | 25 | 60 | NA 4912 | 426 | 60 | 85 | 25 | ||
72 | RNA 4913 | 312 | 72 | 90 | 25 | 65 | NA 4913 | 456 | 65 | 90 | 25 | ||
80 | RNA 4914 | 460 | 80 | 100 | 30 | 70 | NA 4914 | 728 | 70 | 100 | 30 | ||
85 | RNA 4915 | 489 | 85 | 105 | 30 | 75 | NA 4915 | 775 | 75 | 105 | 30 | ||
90 | RNA 4916 | 516 | 90 | 110 | 30 | 80 | NA 4916 | 878 | 80 | 110 | 30 | ||
100 | RNA 4917 | 657 | 100 | 120 | 35 | 85 | NA 4917 | 1250 | 85 | 120 | 35 | ||
105 | RNA 4918 | 745 | 105 | 125 | 35 | 90 | NA 4918 | 1312 | 90 | 125 | 35 | ||
110 | RNA 4919 | 719 | 110 | 130 | 35 | 95 | NA 4919 | 1371 | 95 | 130 | 35 | ||
115 | RNA 4920 | 1150 | 115 | 140 | 40 | 100 | NA 4920 | 1900 | 100 | 140 | 40 | ||
125 | RNA 4922 | 1240 | 125 | 150 | 40 | 110 | NA 4922 | 2070 | 110 | 150 | 40 | ||
135 | RNA 4924 | 1860 | 135 | 165 | 45 | 120 | NA 4924 | 2860 | 120 | 165 | 45 | ||
150 | RNA 4926 | 2657 | 150 | 180 | 50 | 130 | NA 4926 | 3014 | 130 | 180 | 50 | ||
160 | RNA 4928 | 2771 | 160 | 190 | 50 | 140 | NA 4928 | 2860 | 140 | 190 | 50 |
