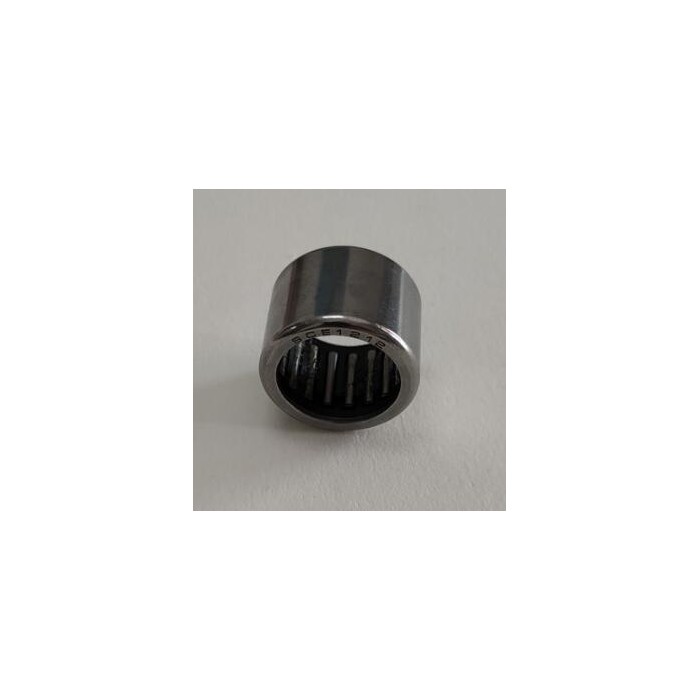

SCE Inch Drawn Cup Needle Roller Bearing



SCE Drawn Cup Needle Roller Bearing is punched by the alloy plate,

 with thin-walled outer ring, cage and Needle Roller. Mainly used in automobile, textile machinery, and motorcycle field.


Main characteristic

1. Shaft can be used as raceway
2. Small radial spatial structure
3. low cost, easy to assemble
4. Can carry high load



Structure sheet

Metric size

Inch size

Structure instruction

HK,TLA,TA

SCE,SCH,BA,BHA,JH

open

BK,TLAM,TAM

BCE,BCH,BAM,BHAM

closed

HK.RS;HK.2RS

SCE.PP,BA.PP

Open, with seal

BK.RS

BCE.P,BAM.P

closed, with single seal

FY,HN,YT

SN,YB

Open, with full complement flat needle roller

MFY.TTL

YBL

Closed, with full complement flat needle roller

F,FH

B,BH

Open, with full complement tip needle roller

MF

M,MH

Closed ,with full complement tip needle roller

Outer ring

1． material: ST12 low carbon steel

2． process: punching

3． heat treatment: carburize, high frequency temper

Cage

1. material: ST12 low carbon steel

2. process: punching

3. heat treatment: carburize, black coating

Needle roller

1. material: GCr15 chrome steel

2. process: grinding

3. HRc60-64heat treatment: quenching, HRC60-64





mm Open Closed Fw D C     mm Open Closed Fw D C
3.175 SCE24TN BCE24TN 3.175 6.35 6.35     14.288 SCE97 -- 14.29 19.05 11.11
4.762 SCE34TN BCE34TN 4.762 8.731 6.35     SCE98 BCE98 14.29 19.05 12.7
SCE36TN BCE36TN 4.762 8.731 9.525     SCE910 BCE910 14.29 19.05 15.88
6.35 SCE44 BCE44 6.35 11.11 6.35     SCE912 BCE912 14.29 19.05 19.05
SCE45 BCE45 6.35 11.11 7.938     SCH98 BCH98 14.29 20.64 12.7
SCE47 BCE47 6.35 11.11 11.11     SCH910 BCH910 14.29 20.64 15.88
7.938 SCE55 BCE55 7.938 12.7 7.938     SCH912 BCH912 14.29 20.64 19.05
SCE57 BCE57 7.938 12.7 11.11     15.875 SCE105 BCE105 15.88 20.64 7.938
SCE59 BCE59 7.938 12.7 14.29     SCE107 BCE107 15.88 20.64 11.11
SCH57 BCH57 7.938 14.29 11.11     SCE108 BCE108 15.88 20.64 12.7
9.525 SCE65 BCE65 9.525 14.29 7.938     SCE1010 BCE1010 15.88 20.64 15.88
SCE66 BCE66 9.525 14.29 9.525     SCE1012 BCE1012 15.88 20.64 19.05
SCE67 BCE67 9.525 14.29 11.11     SCH108 BCH108 15.88 22.23 12.7
SCE68 BCE68 9.525 14.29 12.7     SCH1010 BCH1010 15.88 22.23 15.88
SCE610 BCE610 9.525 15.88 15.88     SCH1012 BCH1012 15.88 22.23 19.05
SCH68 BCH68 9.525 15.88 12.7     SCH1016 BCH1016 15.88 22.23 25.4
11.112 SCE78 BCE78 11.11 15.88 12.7     17.462 SCE116 -- 17.46 22.23 9.525
SCE78 BCH78 11.11 17.46 12.7     SCE118 BCE118 17.46 22.23 12.7
12.7 SCE85 BCE85 12.7 17.46 7.938     SCE1110 BCE1110 17.46 22.23 15.88
SCE86 BCE86 12.7 17.46 9.525     SCE1112 BCE1112 17.46 22.23 19.05
SCE87 BCE87 12.7 17.46 11.11     SCH117 BCH117 17.46 23.81 11.11
SCE88 BCE88 12.7 17.46 12.7     SCH1110 BCH1110 17.46 23.81 15.88
SCE810 BCE810 12.7 17.46 15.88     SCH1112 BCH1112 17.46 23.81 19.05
SCE812 BCE812 12.7 17.46 19.05     19.05 SCE126 BCE126 19.05 25.4 9.525
SCH87 BCH87 12.7 19.05 11.11     SCE128 BCE128 19.05 25.4 12.7
SCH88 BCH88 12.7 19.05 12.7     SCE1210 BCE1210 19.05 25.4 15.88
SCH810 BCH810 12.7 19.05 15.88     SCE1212 BCE1212 19.05 25.4 19.05
SCH812 BCH812 12.7 19.05 19.05     SCH1212 BCH1212 19.05 26.99 19.05
14.288 SCE95 -- 14.29 19.05 7.938     20.638 SCE136 -- 20.64 26.99 9.525
SCE96 BCE96 14.29 19.05 9.525     SCE138 BCE138 20.64 26.99 12.7
