HFL Drawn Cup Needle Clutch

HFL Drawn Cup Needle Clutch

HFL Drawn Cup Needle Clutch

More details


HFL Drawn Cup Needle Clutch

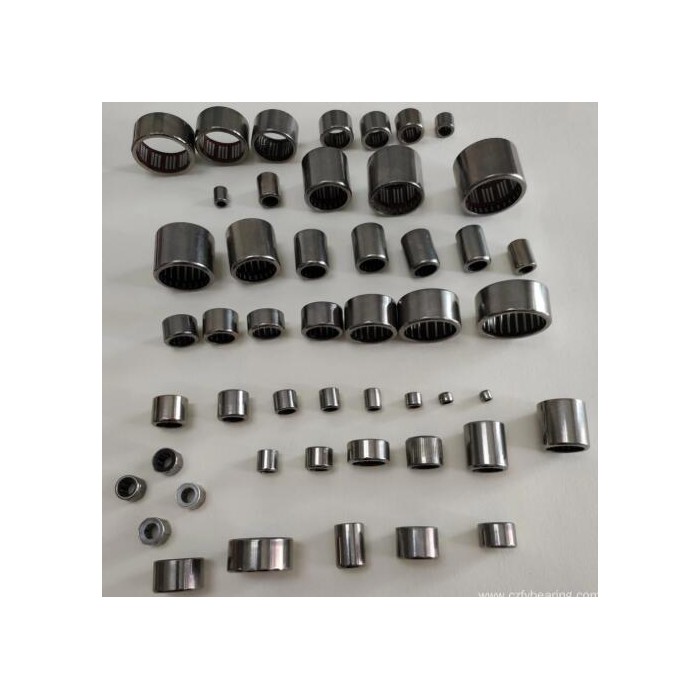

HFL Drawn cup Needle Roller clutch (One Way Bearing) is punched by alloy plate with thin-walled outer ring, cage, spring and needle roller. Used for transferring one-way torque. Widely used in fitness equipment, money-counting machine, washing machine, fishing tools, toy car etc.

Main characteristic

1. one-way rotate, locking at opposite

2. High transform frequency and conversion accuracy

Outer ring

1. material: ST14 low carbon steel

2. process: punching

3. heat treatment: carburize, high frequency temper

Cage

1. material: PA66

2. process: injection molding

3. heat treatment: none

Needle roller

1. material: GCr15 chrome steel

2. process: grinding

3. HRc60-64Heat treatment: quenching, HRC60-64

Spring

Material: nylon or stainless steel

Plastic Steel MASS Fw D C
HFL0308 -- 3 3 3.6 8
HFL0408 -- 3.5 4 8 8
HFL0615KF HFK0615 4 6 10 15
HFL0615KFR HFL0615R 4 6 10 15
-- HFL061012 5 6 10 12
-- HFL081212 6 8 12 12
-- HFL081412 7 8 14 12
HFL0822KF HFL0822 7 8 12 22
HFL0822KFR HFL0822R 7 8 12 22
HFL1022KF HFL1022 8 10 14 22
HFL1022KFR HFL1022R 8 10 14 22
-- HFL1226 18 12 18 26
-- HFL1426 20 14 20 26
-- HFL1626 22 16 22 26
-- HFL1826 25 18 24 26
-- HFL2026 27 20 26 26
-- HFL2530 44 25 32 30
-- HFL3030 51 30 37 30
-- HFL3530 58 35 42 30
