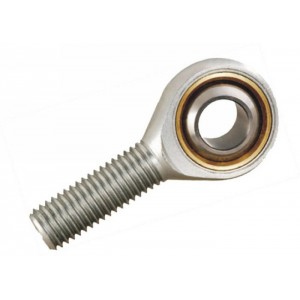

Steel - Steel Rod End Bearing PHS16 For Cars , Trucks With Female Thread
Rod End Bearing PHS16,PHS16 Rod End Bearing,PHS16 Rod End China
Steel - Steel Rod End Bearing PHS16 For Cars , Trucks With Female Thread
Quick Detail:
1) Rod end bearing PHS16
2) Bearing material :Steel-steel
Abundant stock ,Quick Delivery
Description:
Rod end bearing PHS16
Rod ends requiring maintenance
Rod ends consist of an eye-shaped head with integral shank which forms a housing for a spherical plain bearing. As a rule, rod ends are available with left or right-hand female (internal) or male (external) threads according to ISO 965/1:1980. Where rod ends are needed for specific applications - primarily those where a rod end is attached to the end of a piston rod or at the base of a hydraulic cylinder - rod ends are available with slotted shank and compressible threaded section or with a "welding shank" i.e. a shank suitable for welding to another component.
rod ends which require maintenance are available as standard with the sliding contact surface combinations steel/steel and steel/bronze. Both types of rod end require regular republication. Steel/steel rod ends have sliding contact surfaces which are hardened, phosphate and treated with a running-in lubricant. They are very resistant to wear and therefore particularly suitable for applications where heavy loads of alternating direction have to be accommodated. Steel/bronze rod ends have a hardened and chromium plated inner ring and a bronze outer ring. Their performance under conditions of lubricant starvation is therefore very good.
Rod ends with a left-hand thread are identified by an L in the designation prefix, otherwise the rod ends have a right-hand thread. For example, rod end SILA 40 ES has a left-hand thread whereas rod end SIA 40 ES has a right hand thread.
The following types of rod ends requiring maintenance are available:
Steel/steel rod ends with female thread
1. steel/steel rod ends with female thread for hydraulic cylinders
2. steel/steel rod ends with male thread
3. steel/steel rod ends with welding shank
4. steel/bronze rod ends with female
5. Thread steel/bronze rod ends with male thread
Applications:
Cars
Trucks
Race cars
Motorcycles
Lawn tractors,
Boats
Industrial machines
Go-karts
Radio-control helicopters
And many more applications
Related Model:
Number | Dimensions mm | Load ratings KN | Weight | ||||||||||||||
d | d3 | B | C1 | W | l3 | d2 | l4 | h1 | l5 | d4 | d5 | dk | α° | C | Co | ≈kg | |
max | min | max | max | max | max | max | ≈ | ||||||||||
PHS5 | 5 | M5 | 8 | 6 | 9 | 14 | 18 | 36 | 27 | 4 | 8.5 | 11 | 11.11 | 13 | 3.25 | 5.7 | 0.016 |
PHS6 | 6 | M6 | 9 | 6.75 | 11 | 14 | 20 | 40 | 30 | 5 | 10 | 13 | 12.7 | 13 | 4.3 | 7.2 | 0.022 |
PHS8 | 8 | M8 | 12 | 9 | 14 | 17 | 24 | 48 | 36 | 5 | 12.5 | 16 | 15.875 | 14 | 7.2 | 11.6 | 0.047 |
PHS10 | 10 | M10 | 14 | 10.5 | 17 | 21 | 26 | 56 | 43 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 |
PHS12 | 12 | M12 | 16 | 12 | 19 | 24 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 |
PHS14 | 14 | M14 | 19 | 13.5 | 22 | 27 | 34 | 74 | 57 | 8 | 20 | 26 | 25.4 | 16 | 17 | 24 | 0.16 |
PHS16 | 16 | M16 | 21 | 15 | 24 | 33 | 40 | 84 | 64 | 8 | 22 | 28 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
PHS18 | 18 | M18X1.5 | 23 | 16.5 | 27 | 36 | 44 | 93 | 71 | 10 | 25 | 31 | 31.75 | 15 | 26 | 42.5 | 0.32 |
PHS20 | 20 | M20X1.5 | 25 | 18 | 30 | 40 | 48 | 101 | 77 | 10 | 27.5 | 35 | 34.925 | 14 | 31.5 | 42.5 | 0.42 |
PHS22 | 22 | M22X1.5 | 28 | 20 | 32 | 43 | 54 | 111 | 84 | 12 | 30 | 38 | 38.1 | 15 | 38 | 57 | 0.54 |
PHS25 | 25 | M24X2 | 31 | 22 | 36 | 48 | 60 | 124 | 94 | 12 | 33.5 | 42 | 42.85 | 15 | 47.5 | 68 | 0.73 |
PHS28 | 28 | M27X2 | 35 | 24 | 41 | 53 | 66 | 136 | 103 | 14 | 37 | 46 | 47.6 | 15 | 58 | 75 | 0.98 |
PHS30 | 30 | M30X2 | 37 | 25 | 46 | 56 | 70 | 145 | 110 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 |
