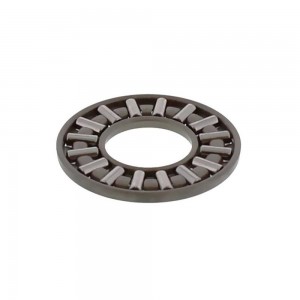

Axial Needle Roller Bearing With Centring Spigot On the Bearing Washer(AXW series)

Axial Needle Roller Bearing With Centring Spigot On the Bearing Washer(AXW series)

Axial Needle Roller Bearing With Centring Spigot On the Bearing Washer(AXW series)

More details


axial bearing washer

Shaft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating    Limiting Speed
Dc1   D1  D B B1 Cr Dynamic Cor Static Oil
mm g mm N rpm
10 AXW10 8.3 10 14 27 3.2 3 9100 24000 14000
12 AXW12 9.1 12 16 29 3.2 3 8900 27800 13000
15 AXW15 10.1 15 21 31 3.2 3.5 10500 3500 11000
17 AXW17 11 17 23 33 3.2 3.5 10900 38800 10000
20 AXW20 14 20 26 38 3.2 3.5 12700 45600 8500
25 AXW25 19.5 25 32 45 3.2 4 13900 57500 7000
30 AXW30 22 30 37 50 3.2 4 15900 69500 6000
35 AXW35 26.6 35 42 55 3.2 4 17000 80100 5500
40 AXW40 39.2 40 47 63 4.2 4 27800 109000 4700
45 AXW45 43.4 45 52 68 4.2 4 29500 119900 4300
50 AXW50 49.2 50 58 73 4.2 4.5 31800 140900 3900
