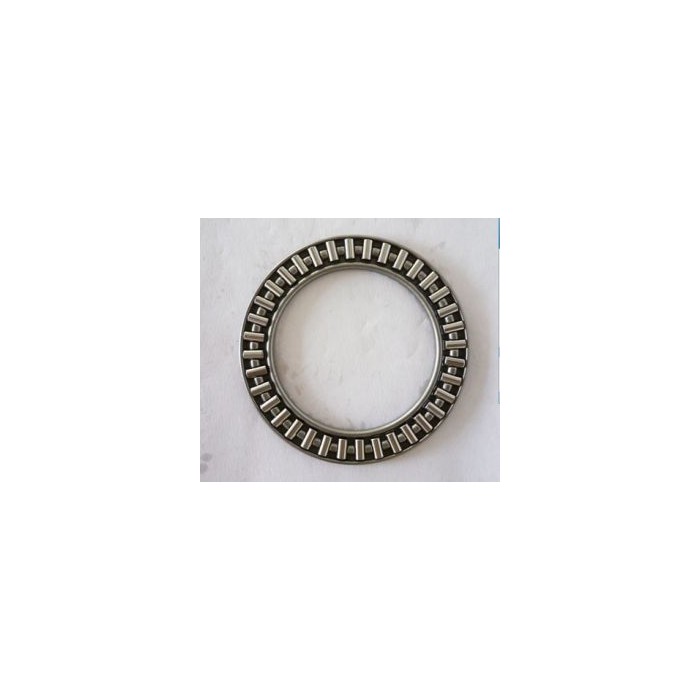

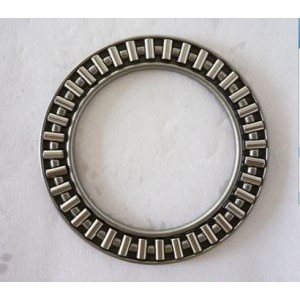

Axial Cylindrical Roller and Cage Assemblies(K811,K812,K871,K894 series)

Axial Cylindrical Roller and Cage Assemblies(K811,K812,K871,K894 series)

Axial Cylindrical Roller and Cage Assemblies(K811,K812,K871,K894 series)

More details



Shaft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating    Limitng Speed
Dc1   Dc Dw Cr Dynamic Cor Static Oil
mm g mm N rpm
15 K81102TN 6 15 28 3.5 13500 28000 11000
17 K81103TN 9 17 30 3.5 14800 32900 10000
20 K81104TN 13 20 35 4.5 23700 52600 8500
25 K81105TN 15 25 42 5 32900 70000 7000
30 K81106TN 17 30 47 5 34800 85000 6000
K81206TN 33 30 52 7.5 63500 139000 6000
K89306TN 40 30 60 5.5 67900 188500 5000
35 K81107TN 19 35 52 5 38500 100900 5500
K81207TN 43 35 62 7.5 79800 198100 4900
K89307TN 53 35 68 6 79800 236500 4600
K89407TN 111 35 80 9 149000 425000 4200
40 K81108TN 31 40 60 6 55000 147500 4800
K81208TN 81 40 68 9 106500 264600 4400
K89308TN 98 40 78 7 119000 384500 4000
K87408 127 40 90 6.5 127000 478000 3600
K89408TN 200 40 90 10 199000 579500 3700
45 K81109TN 35 45 65 6 58500 162500 4400
K81209TN 85 45 73 9 104500 264100 4000
K89309TN 121 45 85 7.5 138500 439000 3600
K87409 174 45 100 7 153500 559800 3200
K87409TN 262 45 100 11 238600 699200 3300
50 K81110TN 38 50 70 6 60700 167000 4000
K81210TN 98 50 78 9 106000 309000 3700
K89310TN 175 50 95 8 166500 557900 3200
K87410TN 256 50 110 8 199600 738000 2900
K89410TN 360 50 110 12 280500 899000 3000
55 K81111TN 45 55 78 6 87900 298700 3600
K81211TN 166 55 90 11 153100 404500 3300
K89311TN 195 55 105 9 183200 599800 2900
K87411 303 55 120 8 221500 868600 2600
K89411TN 473 55 120 13 339500 1049050 2700
60 K81112TN 82 60 85 7.5 102100 309500 3300
K81212TN 176 60 95 11 171100 478000 3100
K89312TN 210 60 110 9 195100 669800 2700
K87412 390 60 130 9 259100 998600 2500
K89412TN 538 60 130 14 388000 1219500 2500
65 K81112TN 90 65 90 7.5 106500 339500 3100
K81213TN 185 65 100 11 176800 499500 2900
K89313TN 210 65 115 9 193500 667900 2600
K87413 470 65 140 10 299800 1139500 2300
K89413TN 790 65 140 15 444000 1396000 2300
70 K81114TN 92 70 95 7.5 110800 364500 2900
K81214TN 212 70 105 11 186000 549700 2700
K89314TN 290 70 125 10 238500 829600 2400
K87414 650 70 150 11 359000 1376900 2200
K89414 920 70 150 16 449800 1389650 2100
75 K81115TN 96 75 100 7.5 104500 339600 2700
K81215TN 195 75 110 11 171500 498700 2600
K89315TN 375 75 135 11 284800 1009000 2200
K87415 800 75 160 12 429500 1658900 2000
K89415 1070 75 160 17 499600 1579800 2000
80 K81116TN 95 80 105 7.5 105800 348800 2600
K81216TN 234 80 115 11 200600 629600 2400
K81316TN 420 80 140 11 304500 1109800 2100
K87416 880 80 170 12
