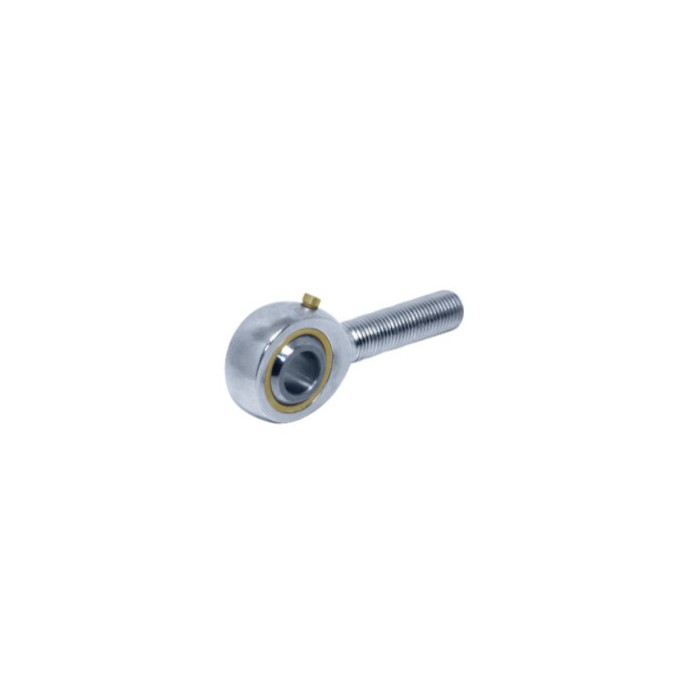

POSB7 Rod End Bearing

POSB7 Rod End Bearing,Rod End POSB7 China,

Rod End Bearing POSB7

As series PHS.. rod end and POS.. rod end, but in inch dimensions.

POSB7 Rod End Bearing,Rod End POSB7 China,

Rod End Bearing POSB7

As series PHS.. rod end and POS.. rod end, but in inch dimensions.

Sliding contact surfaces:				Steel/Bronze

Bearing Number										Load ratings (N)		≈a°	Unit Weight (kg)
	Dimensions(mm)									Load ratings (N)
	d	d2	B	C1	d3	L2	L1	h	d1	Dyna- mic	S- tatic
POSB3	.1900 4.826	.625 15.88	.312 7.92	.250 6.35	.1900 -32UNF	1.536 39.70	.750 19.05	1.25 31.75	.306 7.77	780	1120	13	0.014
POSB4	.2500 6.350	.750 19.05	.375 9.53	.281 7.14	.2500 -28UNF	1.937 49.20	1.000 25.40	1.562 39.67	.355 9.02	1030	2040	13	0.023
POSB5	.3125 7.938	.875 22.23	.437 11.10	.344 8.74	.3125 -24UNF	2.312 58.72	1.250 31.75	1.875 47.63	.447 11.35	1530	3270	13	0.036
POSB6	.3750 9.525	1.0000 25.40	.500 12.70	.406 10.31	.3750 -24UNF	2.438 61.93	1.250 31.75	1.938 49.23	.517 13.13	2080	4980	13	0.054
POSB7	.4375 11.11	1.125 28.58	.562 14.27	.437 11.10	.4375 -20UNF	2.688 68.28	1.375 34.93	2.125 53.98	.586 14.88	2520	6020	13	0.077
POSB8	.5000 12.700	1.312 33.32	.625 15.88	.500 12.70	.5000 -20UNF	3.094 78.59	1.500 38.1	2.438 61.93	.698 17.73	3300	8370	13	0.127
POSB10	.6250 15.875	1.500 38.10	.750 19.05	.562 14.27	.6250 -18UNF	3.375 85.73	1.625 41.28	2.625 66.68	.839 21.31	4500	9050	13	0.186
POSB12	.7500 19.050	1.750 44.46	.875 22.23	.687 17.45	.7500 -16UNF	3.75 95.25	1.750 44.45	2.875 73.03	.978 24.84	6410	12700	13	0.295
POSB16	1.0000 25.400	2.750 69.85	1.375 34.93	1.000 25.40	1.2500 -12UNF	5.50 139.7	2.125 53.98	4.125 104.8	1.269 32.23	13300	19500	13	1.129

Remark:
1. The listed load rating, unit weight is for reference.
2. For left-hand thread, suffix "L" is added to bearing number and thread sign, e.g. POSB 12L 3/4-16L-2A
