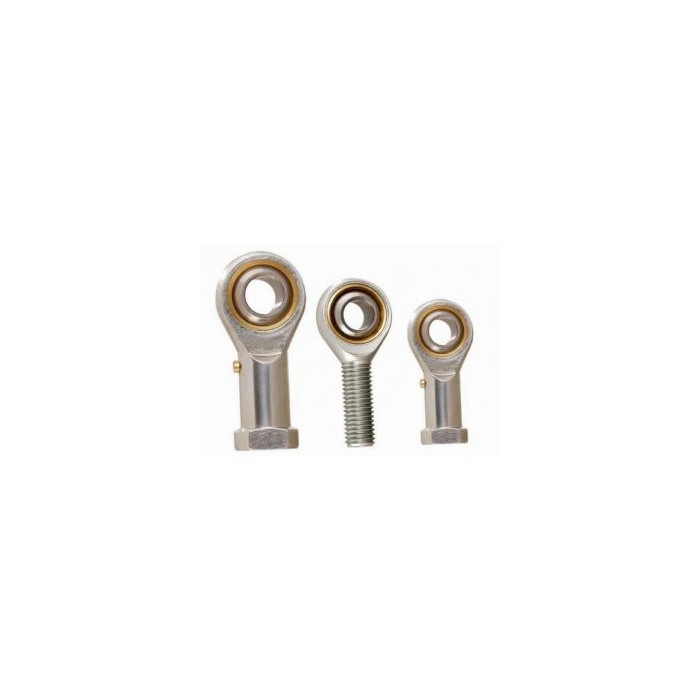

PHS8 Rod End Bearing,Rod End PHS8 China,Rod End Bearing PHS8
PHS Rod End Bearing
Phs8 rod end,phs10 rod end,phs12 rod end,phs14 rod end,phs16 rod end,phs18 rod end
Rod end with bronze liner. Body is made of carbon steel, zinc coated,
with male or female thread; sliding surface with bronze liner; inner ring
is made of carbon chromium steel, spherical surface with hard chrome
plated. It can be relubricated via a nipple or a hole in the rod end,
except the hole diameter d≤6
Rod end with bronze liner. Body is made of carbon steel, zinc coated,
with male or female thread; sliding surface with bronze liner; inner ring
is made of carbon chromium steel, spherical surface with hard chrome
plated. It can be relubricated via a nipple or a hole in the rod end,
except the hole diameter d≤6
Sliding
contact surfaces:
|
Steel/Bronze | |||||||||||||||||||||||||||||
Bearing Number |
Load ratings KN |
≈a° | Unit Weight (kg) |
|||||||||||||||||||||||||||
Dimensions(mm) | ||||||||||||||||||||||||||||||
d | B | dk | C1 | d2 | d3 | h1 | l3 | l4 | l5 | l7 | w | d4 | d5 | Dyn-amic | Static | |||||||||||||||
PHS 5 | 5 | 8 | 11.11 | 6 | 16 |
M5
X0.8
|
27 | 14 | 35 | 4 | 8 | 9 | 9 | 11 | 3.3 | 4.1 | 13 | 0.016 | ||||||||||||
PHS 6 | 6 | 9 | 12.7 | 6.75 | 18 | M6X1 | 30 | 14 | 39 | 5 | 9 | 11 | 10 | 13 | 4.3 | 5.3 | 13 | 0.026 | ||||||||||||
PHS 8 | 8 | 12 | 15.8 | 9 | 22 |
M8
X1.25
|
36 | 17 | 47 | 5 | 11 | 14 | 12.5 | 16 | 6.8 | 8.5 | 14 | 0.044 | ||||||||||||
PHS 10 | 10 | 14 | 19.05 | 10.5 | 26 |
M10
X1.5
|
43 | 21 | 56 | 6.5 | 13 | 17 | 15 | 19 | 10 | 11 | 13 | 0.072 | ||||||||||||
M10
X1.25
|
||||||||||||||||||||||||||||||
PHS 12 | 12 | 16 | 22.23 | 12 | 30 |
M12
X1.75
|
50 | 24 | 65 | 6.5 | 15 | 19 | 17.5 | 22 | 13 | 14 | 13 | 0.108 | ||||||||||||
M12
X1.25
|
||||||||||||||||||||||||||||||
PHS 14 | 14 | 19 | 25.4 | 13.5 | 34 |
M14
X2
|
57 | 27 | 74 | 8 | 16 | 22 | 21 | 25 | 17 | 20 | 16 | 0.161 | ||||||||||||
M14
X1.5
|
||||||||||||||||||||||||||||||
PHS 16 | 16 | 21 | 28.58 | 15 | 38 |
M16
X2
|
64 | 33 | 83 | 8 | 17.5 | 24 | 22 | 27 | 21 | 25 | 15 | 0.225 | ||||||||||||
M16
X1.5
|
||||||||||||||||||||||||||||||
PHS 18 | 18 | 23 | 31.75 | 16.5 | 42 |
M18
X1.5
|
71 | 36 | 92 | 10 | 19.5 | 27 | 25 | 31 | 26 | 30 | 15 | 0.296 | ||||||||||||
PHS 20 | 20 | 25 | 34.93 | 18 | 46 |
M20
X1.5
|
77 | 40 | 100 | 10 | 21.5 | 30 | 27.5 | 34 | 31 | 35 | 14 | 0.385 | ||||||||||||
PHS 22 | 22 | 28 | 38.1 | 20 | 50 |
M22
X1.5
|
84 | 43 | 109 | 12 | 23 | 32 | 30 | 37 | 38 | 43 | 15 | 0.488 | ||||||||||||
PHS 25 | 25 | 31 | 42.86 | 22 | 60 |
M24
X2
|
94 | 48 | 124 | 12 | 29.5 | 36 | 33.5 | 42 | 47 | 65 | 15 | 0.749 | ||||||||||||
PHS 28 | 28 | 35 | 47.6 | 25 | 66 |
M27
X2
|
103 | 53 | 136 | 12 | 32.5 | 41 | 37 | 46 | 59 | 77 | 15 | 0.949 | ||||||||||||
PHS 30 | 30 | 37 | 50.8 | 25 | 70 |
M30
X2
|
110 | 56 | 145 | 15 | 34 | 41 | 40 | 51 | 63 | 86 | 17 | 1.13 | ||||||||||||
PHS 35 | 35 | 43 | 57.15 | 28 | 76 |
M36
X2
|
125 | 56 | 165 | 15 | 42 | 50 | 46 | 56 | 90 | 116 | 17 | 1.6 | ||||||||||||
Remark: | ||||||||||||||||||||||||||||||
1. The listed load rating,
unit weight is for reference.
|
||||||||||||||||||||||||||||||
2. For left-hand thread, suffix "L" is added to bearing number and thread sign,
e.g. PHSL20 M20X1.5L-6H
|
