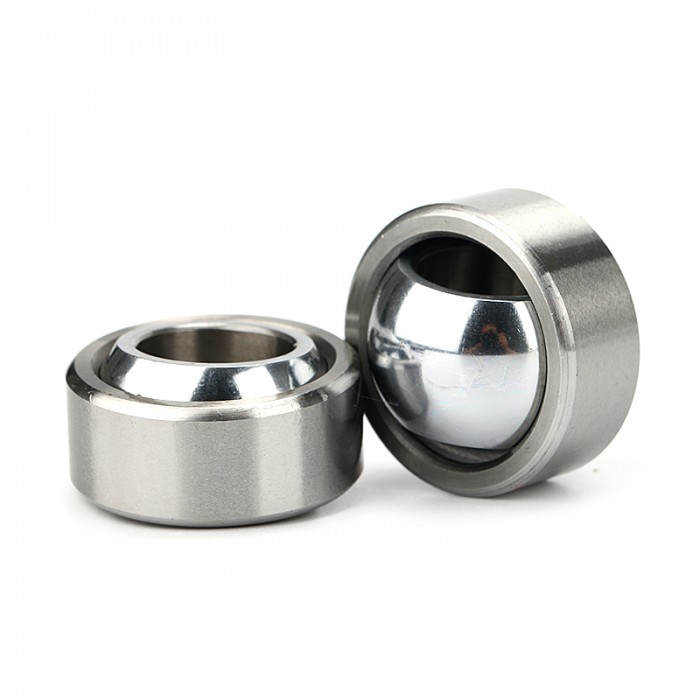

COM8T Spherical Bearing,Spherical Plain Bearings COM8T,COM8T Self-lubricating Bearing
Specifications
BEARING NO. | B | D | W | T | O | M | BALL | a° | STATIC | APPROX | |
DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | CHAMFER | DIA. | MIS. | RADIAL | WEIGHT | ||
0 | 0 | 0 | 0.005 | REF. | REF. | REF. | ANGLE | LOAD | (LBS) | ||
-0.0005 | -0.0005 | -0.002 | -0.005 | REF. | (LBS) | ||||||
COM-3T | 0.19 | 0.5625 | 0.281 | 0.218 | 0.293 | 0.015 | 0.406 | 11 | 3250 | 0.014 | |
COM-4T | 0.25 | 0.6562 | 0.343 | 0.25 | 0.364 | 0.022 | 0.5 | 13.5 | 4950 | 0.022 | |
COM-5T | 0.3125 | 0.75 | 0.375 | 0.281 | 0.419 | 0.032 | 0.562 | 12 | 6475 | 0.03 | |
COM-6T | 0.375 | 0.8125 | 0.406 | 0.312 | 0.516 | 0.032 | 0.656 | 10 | 8400 | 0.038 | |
COM-7T | 0.4375 | 0.9062 | 0.437 | 0.343 | 0.53 | 0.032 | 0.687 | 8 | 9453 | 0.047 | |
COM-8T | 0.5 | 1 | 0.5 | 0.39 | 0.64 | 0.032 | 0.781 | 9.5 | 13250 | 0.065 | |
COM-9T | 0.5625 | 1.0937 | 0.562 | 0.437 | 0.71 | 0.032 | 0.875 | 9.5 | 16630 | 0.086 | |
COM-10T | 0.625 | 1.1875 | 0.625 | 0.5 | 0.78 | 0.032 | 0.968 | 8.5 | 21280 | 0.11 | |
COM-12T | 0.75 | 1.4375 | 0.75 | 0.593 | 0.92 | 0.044 | 1.187 | 9 | 31920 | 0.204 | |
COM-14T | 0.875 | 1.5625 | 0.875 | 0.703 | 0.98 | 0.044 | 1.312 | 9.5 | 41960 | 0.263 | |
COM-16T | 1 | 1.75 | 1 | 0.797 | 1.118 | 0.044 | 1.5 | 10 | 55200 | 0.386 | |
HCOM-16T | 1 | 2 | 1 | 0.781 | 1.36 | 0.032 | 1.687 | 9 | 70820 | 0.553 | |
HCOM-19T | 1.1875 | 2.375 | 1.187 | 0.937 | 1.61 | 0.032 | 2 | 8.5 | 100730 | 0.895 | |
HCOM-20T | 1.25 | 2.375 | 1.187 | 0.937 | 1.61 | 0.032 | 2 | 8.5 | 100730 | 0.895 | |
HCOM-24T | 1.5 | 2.75 | 1.375 | 1.094 | 1.86 | 0.032 | 2.312 | 8.5 | 135950 | 1.358 | |
HCOM-28T | 1.75 | 3.125 | 1.562 | 1.25 | 2.11 | 0.044 | 2.625 | 8 | 176370 | 1.948 | |
HCOM-32T | 2 | 3.5 | 1.75 | 1.375 | 2.36 | 0.044 | 2.937 | 8.5 | 217060 | 2.65 |
