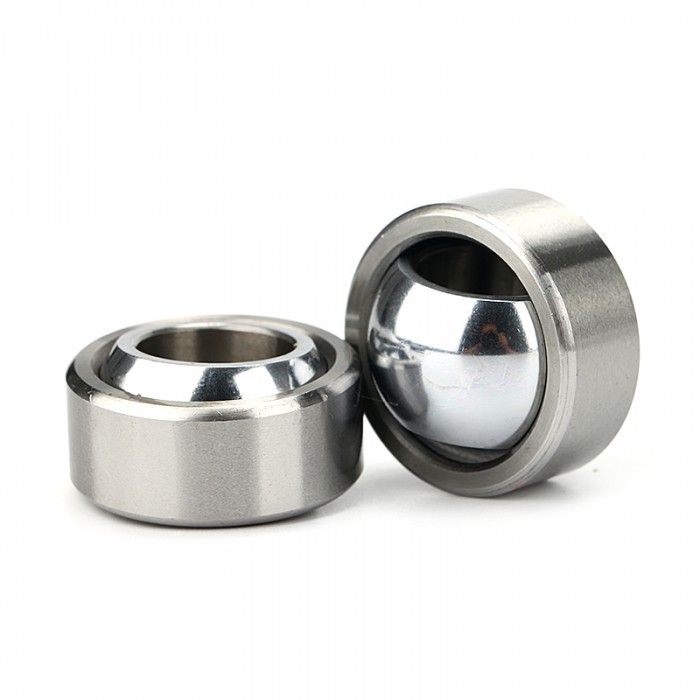

COM10T Spherical Bearing,Spherical Plain Bearings COM10T,COM10T Self-lubricating Bearing
Spherical ball is made from 52100 bearing steel, precision ground, surface hardened
for wear resistance and hard chrome plated for corrosion resistance.
Race is made from 1045 steel and oil coated
The COM-T incorporates a permanently bonded PTFE liner to the inner diameter of the race.
COM-T has no lubrication holes or grooves in the race
Specifications
BEARING NO. | B | D | W | T | O | M | BALL | a° | STATIC | APPROX | |
DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | CHAMFER | DIA. | MIS. | RADIAL | WEIGHT | ||
0 | 0 | 0 | 0.005 | REF. | REF. | REF. | ANGLE | LOAD | (LBS) | ||
-0.0005 | -0.0005 | -0.002 | -0.005 | REF. | (LBS) | ||||||
COM-3T | 0.19 | 0.5625 | 0.281 | 0.218 | 0.293 | 0.015 | 0.406 | 11 | 3250 | 0.014 | |
COM-4T | 0.25 | 0.6562 | 0.343 | 0.25 | 0.364 | 0.022 | 0.5 | 13.5 | 4950 | 0.022 | |
COM-5T | 0.3125 | 0.75 | 0.375 | 0.281 | 0.419 | 0.032 | 0.562 | 12 | 6475 | 0.03 | |
COM-6T | 0.375 | 0.8125 | 0.406 | 0.312 | 0.516 | 0.032 | 0.656 | 10 | 8400 | 0.038 | |
COM-7T | 0.4375 | 0.9062 | 0.437 | 0.343 | 0.53 | 0.032 | 0.687 | 8 | 9453 | 0.047 | |
COM-8T | 0.5 | 1 | 0.5 | 0.39 | 0.64 | 0.032 | 0.781 | 9.5 | 13250 | 0.065 | |
COM-9T | 0.5625 | 1.0937 | 0.562 | 0.437 | 0.71 | 0.032 | 0.875 | 9.5 | 16630 | 0.086 | |
COM-10T | 0.625 | 1.1875 | 0.625 | 0.5 | 0.78 | 0.032 | 0.968 | 8.5 | 21280 | 0.11 | |
COM-12T | 0.75 | 1.4375 | 0.75 | 0.593 | 0.92 | 0.044 | 1.187 | 9 | 31920 | 0.204 | |
COM-14T | 0.875 | 1.5625 | 0.875 | 0.703 | 0.98 | 0.044 | 1.312 | 9.5 | 41960 | 0.263 | |
COM-16T | 1 | 1.75 | 1 | 0.797 | 1.118 | 0.044 | 1.5 | 10 | 55200 | 0.386 | |
HCOM-16T | 1 | 2 | 1 | 0.781 | 1.36 | 0.032 | 1.687 | 9 | 70820 | 0.553 | |
HCOM-19T | 1.1875 | 2.375 | 1.187 | 0.937 | 1.61 | 0.032 | 2 | 8.5 | 100730 | 0.895 | |
HCOM-20T | 1.25 | 2.375 | 1.187 | 0.937 | 1.61 | 0.032 | 2 | 8.5 | 100730 | 0.895 | |
HCOM-24T | 1.5 | 2.75 | 1.375 | 1.094 | 1.86 | 0.032 | 2.312 | 8.5 | 135950 | 1.358 | |
HCOM-28T | 1.75 | 3.125 | 1.562 | 1.25 | 2.11 | 0.044 | 2.625 | 8 | 176370 | 1.948 | |
HCOM-32T | 2 | 3.5 | 1.75 | 1.375 | 2.36 | 0.044 | 2.937 |
