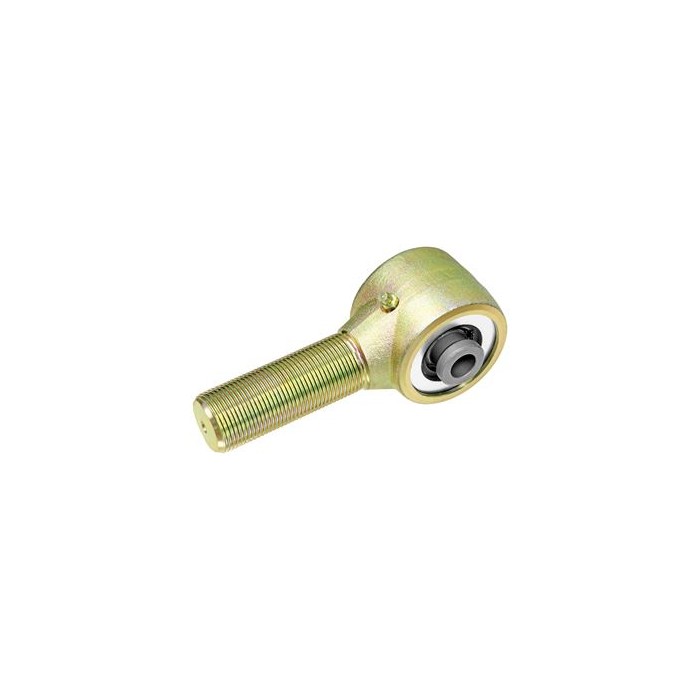

Chromoly Rock Joints, Heims, Rod Ends, Johnny Joint
Johnny Joint is the original urethane bushed spherical ball joint and still the undisputed leader in articulation and durability. The bushings in the Johnny Joint are made of a proprietary urethane that surrounds a smooth heat treated inner ball that rotates without binding, enabling Johnny Joints to last up to 10 times longer than the knock-off products that flood the market.

Chromoly Rock Joints, Heims, Rod Ends, Johnny Joint

Johnny Joint is the original urethane bushed spherical ball joint and still the undisputed leader in articulation and durability. The bushings in the Johnny Joint are made of a proprietary urethane that surrounds a smooth heat treated inner ball that rotates without binding, enabling Johnny Joints to last up to 10 times longer than the knock-off products that flood the market.



More details


The Johnny Joint is the most recognized flex joint on the market, trusted by suspension designers and manufacturers for its unique combination of features, including superior articulation, proven durability, quiet operation, and limited deflection.

Chromoly Rod End, Heim Joints Johnny Joint


Material: 4130 Chromoly Steel
Surface: Silver or Yellow Zinc Plated
Thread: Right Thread ,Left Thread
Part Number Mounting Width Bolt Dia. Thread UNF Thread Length Housing O.D. Offset Angle Bushing Material
YS-001 2-5/8" 9/16" 1 1/4-12 5" 3" 0 Polyurethane
YS-002 2-5/8" 9/16" 1 1/4-12 5" 3" 10 Polyurethane
YS-003 2" 7/16" 7/8-18 3.15" 2.36" 0 Polyurethane
YS-004 2-5/16" 9/16" 7/8-18 3.15" 2.36" 9 Polyurethane

YS-005 2-5/8" 9/16" 1 1/4-12  3.5" 2.68" 0 Delrin
YS-006 2-5/8" 9/16" 1"-14 3.5" 2.68" 0 Delrin
YS-007 2-5/8" 9/16" 7/8"-14 3.5" 2.68" 0 Delrin
YS-008 1.6" 9/16" 1"-14 2.6" 2.1" 0 Delrin
YS-009 1.6" 9/16" 7/8"-14 2.6" 2.1" 0 Delrin
YS-010 1.6" 9/16" 3/4"-16 2.6" 2.1" 0 Delrin
YS-011 1.6" 7/16" 1"-14 2.6" 2.1" 0 Delrin
YS-012 1.6" 7/16" 7/8"-14 2.6" 2.1" 0 Delrin
YS-013 1.6" 7/16" 3/4"-16 2.6" 2.1" 0 Delrin
YS-014 7/8" Ball Width 3/4" 3/4"-16 2.6" 2.1" 0 Delrin
