Description

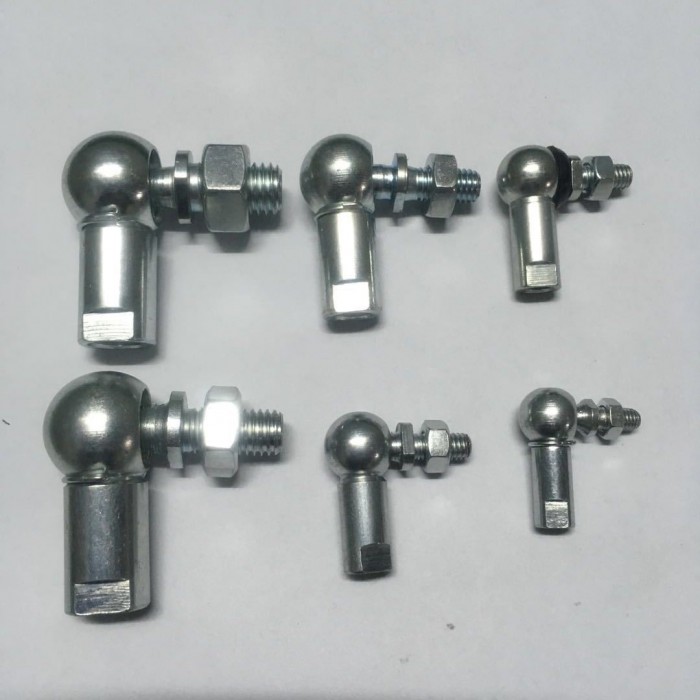

  • Ball Housing: carbon steel and white zinc plated
  • Ball Pin: 45# carbon steel, ASTM 1045, JIS 45C
  • Circlip: spring steel

Features
  • Thread: M10x1.5 thread
  • Net Weight: 0.10kg
  • Lubrication: with grease
  • consist of a ball socket DIN 71805 and a ball shank DIN 71803
  • Performance: high hardness,reliable and durable



  Part No.

 Dimensions      mm

Load ratings

Weight

Right hand Left hand Q

M1

6H

M2

6g

b c d g h H

k

min

SW SR KN kg
SQP 5 S SQPL 5 S 8 M5x0.8 M5x0.8 9 10 8 8 22 0.7 10.2 7 6.4 15.2 0.014
SQP 6 S SQPL 6 S  10 M6x1.0 M6x1.0 11 12.5 10 10 25 0.7 11.5 8 7.4 25.2 0.024
SQP 8 S SQPL 8 S  13 M8x1.25 M8x1.25 13 16.5 13 13 30 1.16 14 11 9.65 53.1 0.053
SQP 10 S SQPL 10 S 16 M10x1.5 M10x1.5 16 20 16 16 35 1.16 15.5 13 12 103.8 0.097
SQP 12 S SQPL 12 S 16 M12x1.75 M12x1.75 16 20 16 16 35 1.16 15.5 13 12 103.8 0.097
SQP 14 S SQPL 14 S 22 M14x2.0 M14x2.0 20 27 19 22 45 1.5 21.5 17 15 220.9 0.218
SQP 14-1 S SQPL 14-1 S 22 M14x1.5 M14x1.5 20 27 19 22 45 1.5 21.5 17 15 220.9 0.21
