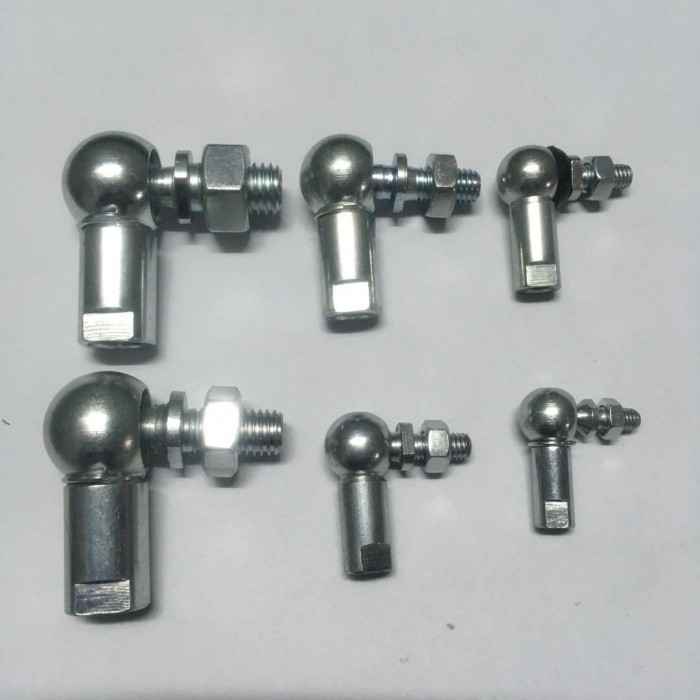

CSM12 ball joint,SQP12S Angle Ball Joint Rod End Bearing
Description
-
Ball Housing: carbon steel and white zinc plated
-
Ball Pin: 45# carbon steel, ASTM 1045, JIS 45C
-
Circlip: spring steel
Features
-
Thread: M10x1.5 thread
-
Net Weight: 0.10kg
-
Lubrication: with grease
-
consist of a ball socket DIN 71805 and a ball shank DIN 71803
-
Performance: high hardness,reliable and durable
Part No. |
Dimensions mm |
Load ratings |
Weight |
||||||||||||
Right hand | Left hand | Q |
M1 6H |
M2 6g |
b | c | d | g | h | H |
k min |
SW | SR | KN | kg |
SQP 5 S | SQPL 5 S | 8 | M5x0.8 | M5x0.8 | 9 | 10 | 8 | 8 | 22 | 0.7 | 10.2 | 7 | 6.4 | 15.2 | 0.014 |
SQP 6 S | SQPL 6 S | 10 | M6x1.0 | M6x1.0 | 11 | 12.5 | 10 | 10 | 25 | 0.7 | 11.5 | 8 | 7.4 | 25.2 | 0.024 |
SQP 8 S | SQPL 8 S | 13 | M8x1.25 | M8x1.25 | 13 | 16.5 | 13 | 13 | 30 | 1.16 | 14 | 11 | 9.65 | 53.1 | 0.053 |
SQP 10 S | SQPL 10 S | 16 | M10x1.5 | M10x1.5 | 16 | 20 | 16 | 16 | 35 | 1.16 | 15.5 | 13 | 12 | 103.8 | 0.097 |
SQP 12 S | SQPL 12 S | 16 | M12x1.75 | M12x1.75 | 16 | 20 | 16 | 16 | 35 | 1.16 | 15.5 | 13 | 12 | 103.8 | 0.097 |
SQP 14 S | SQPL 14 S | 22 | M14x2.0 | M14x2.0 | 20 | 27 | 19 | 22 | 45 | 1.5 | 21.5 | 17 | 15 | 220.9 | 0.218 |
SQP 14-1 S | SQPL 14-1 S | 22 | M14x1.5 | M14x1.5 | 20 | 27 | 19 | 22 | 45 | 1.5 | 21.5 | 17 | 15 | 220.9 | 0.21 |
