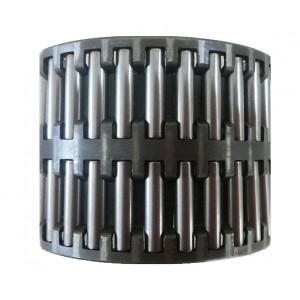

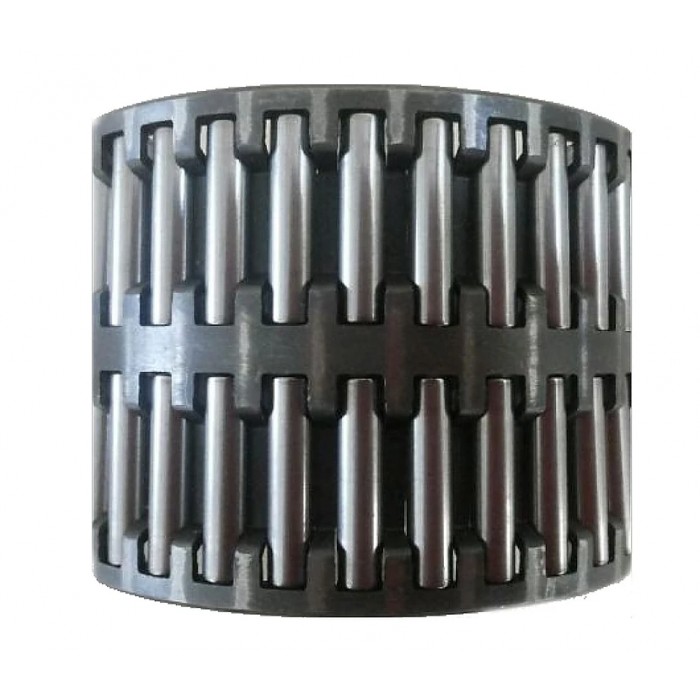

KZK type Needle bearing

KZK type Needle bearing

Radial Needle Roller and Cage Assemblies for Pin of Connecting Rod

KZK type

More details


Radial Needle Roller and Cage Assemblies for Pin of Connecting Rod

KZK type

Shaft diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Orignal Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
8 KZK8X12X8 19242/8 1.9 8 12 8 4700 4580
10 KZK10X14X10 29242/10 3.3 10 14 10 50000 5160
12 KZK12X15X13 49241/12 3.6 12 15 13 5300 7400
KZK12X16X10 29242/12 3.5 12 16 10 6100 6900
KZK12X16X11   3.7 12 16 11 6200 7100
KZK12X17X10 19243/12 5 12 17 10 7020 7020
KZK12X18X10 19242/12 7.8 12 18 10 7400 7200
14 KZK14X18X10 29241/14 4 14 18 10 7100 8500
KZK14X19X10 19242/14 5.5 14 19 10 7300 7600
KZK14X19X10   7.5 14 19 12 7460 7950
KZK14.4X20.4X10 6.5 14.4 20.4 10 8100 7800
15 KZK15X19X9   5 15 19 9 6800 7100
KZK15X19X10 29241/15 6 15 19 10 7200 8400
KZK15X20X20 19242/15 7.5 15 20 10 7800 9100
KZK15X21X10   8.5 15 21 10 8400 10500
KZK15X21X11   9.5 15 21 11 8500 10700
KZK15.2X22.2X12 11.5 15.2 2.2 12 8600 11100
16 KZK16X20X10 29241/16 5.8 16 20 10 8200 9200
KZK16X20X24 79241/16 6.3 16 20 24 8700 9400
KZK16X21X10 19242/16 5.8 16 21 10 8800 9800
KZK16X22X12 19243/16 9.5 16 22 12 11000 11900
KZK16X22X14   11 16 22 14 13200 13930
17 KZK17X21X10 29241/17 6.7 17 21 10 7600 9000
KZK17X23X11   9.5 17 23 11 8100 11300
18 KZK18X22X10 29241/18 6.9 18 22 10 7600 9800
KZK18X22X24   7.2 18 22 24 10100 17200
KZK18X24X11.6 19243/18 10 18 24 11.6 11600 13100
KZK18X24X12 19243/18 10 18 24 12 11600 13100
KZK18X24X13.3   12.4 18 24 13.3 9000 10700
KZK18X24X13.5   12.4 18 24 13.5 9000 10700
KZK18X24X15 29243/18 14 18 24 15 13200 15500
19 KZK18X25X16 19244/19K 13.9 19 25 16 12100 15500
KZK19X28X14   20 19 28 14 12100 15000
20 KZK20X25X16   12 20 25 16 9900 12300
KZK20X26X12 19243/20 9.6 20 26 12 10100 12500
KZK20X26X14   12 20 26 14 12600 16700
KZK20X26X17 9246/20 17 20 26 17 12700 17600
22 KZK22X28X13   15 22 28 13 11900 16500
KZK22X28X14   16 22 28 14 12600 16800
KZK22X28X15 29242/22 16.7 22 28 15 13500 18500
KZK22X28X16 29243/22K 18 22 28 16 14400 20100
KZK22X29X15   15.2 22 29 15 17800 21800
KZK22X29X16 19244/22 19 22 29 16 17800 21800
KZK22X30X16 SZ-432 25.7 22 30 16 18700 22300
23 KZK23X29X13   12 23 29 13 10000 11300
KZK23X30X14   19.4 23 30 14 9350 10100
KZK23X30X16   22 23 30 16 9780 11800
23.1 KZK23.1X28.1X14 29242/23.1 12.9 23.1 28.1 14 10600 15800
24 KZK24X30X15   17 24 30 15 11200 13700
KZK24X30X16   18 24 30 16 11200 13700
25 KZK25X30X28 69245/25 24 25 30 28 13300 15200
KZK25X31X12 19243/25K 16 25 31 12 8700 8800
KZK25X31X17 39243/25 23 25 31 17 9200 9750
KZK25X31X20 49243/25 26 25 31 20 9700 10600
