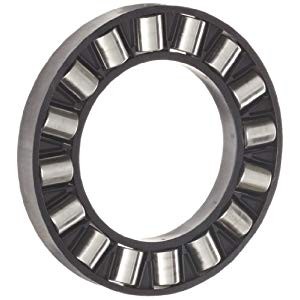

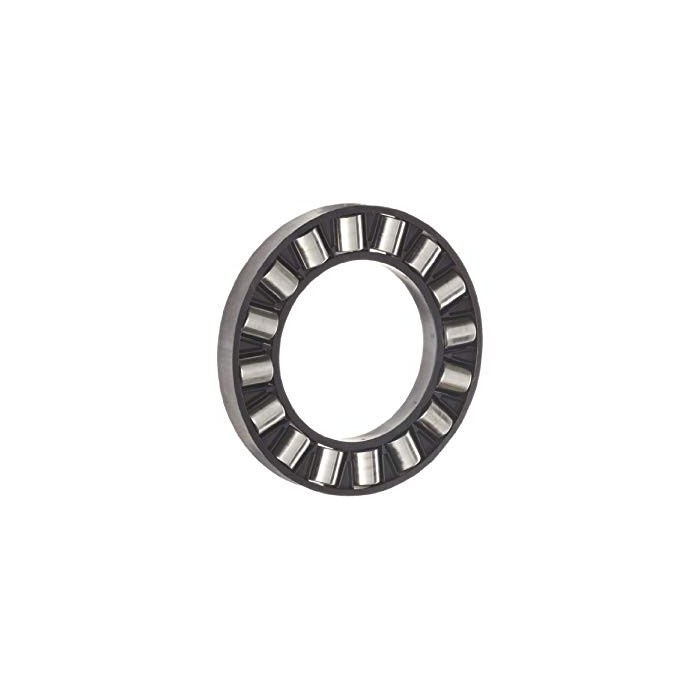

K89408TN Thrust Needle Bearing

K89408TN Thrust Needle Bearing

K89408TN Thrust Needle Bearing,

K89408TN Bearing,

Axial Cylindrical Thrust Roller Bearings

More details


K89408TN Thrust Needle Bearing,K89408TN Bearing,Axial Cylindrical Thrust Roller Bearings



Shaft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating    Limitng Speed
Dc1   Dc Dw Cr Dynamic Cor Static Oil
mm g mm N rpm
15 K81102TN 6 15 28 3.5 13500 28000 11000
17 K81103TN 9 17 30 3.5 14800 32900 10000
20 K81104TN 13 20 35 4.5 23700 52600 8500
25 K81105TN 15 25 42 5 32900 70000 7000
30 K81106TN 17 30 47 5 34800 85000 6000
K81206TN 33 30 52 7.5 63500 139000 6000
K89306TN 40 30 60 5.5 67900 188500 5000
35 K81107TN 19 35 52 5 38500 100900 5500
K81207TN 43 35 62 7.5 79800 198100 4900
K89307TN 53 35 68 6 79800 236500 4600
K89407TN 111 35 80 9 149000 425000 4200
40 K81108TN 31 40 60 6 55000 147500 4800
K81208TN 81 40 68 9 106500 264600 4400
K89308TN 98 40 78 7 119000 384500 4000
K87408 127 40 90 6.5 127000 478000 3600
K89408TN 200 40 90 10 199000 579500 3700
