CM8 LIGHT DUTY ROD END Inch - Commercial - Male - Right/left Hand Threads

CM8 LIGHT DUTY ROD END Inch - Commercial - Male - Right/left Hand Threads

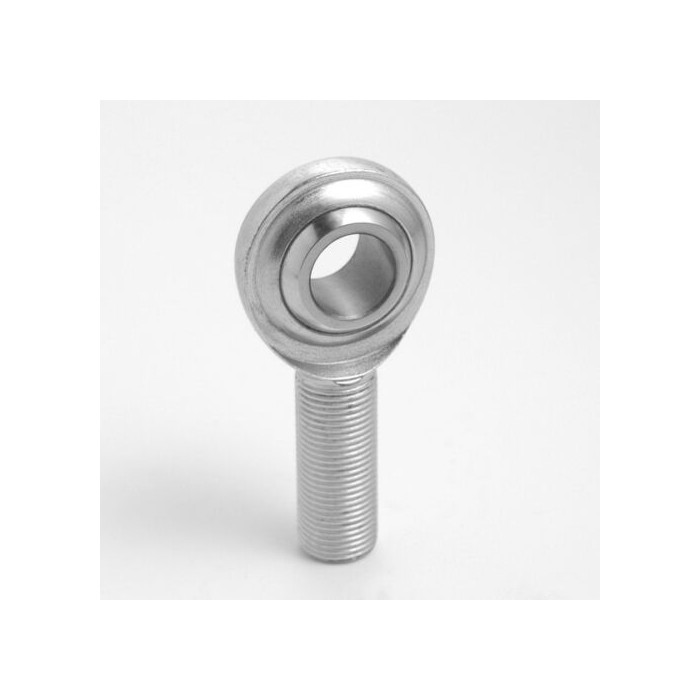

CM8 LIGHT DUTY FK ROD END

More details


CM8 LIGHT DUTY FK ROD END




CM8 LIGHT DUTY FK ROD END


These light duty rod ends can work well on many applications. We do not recommend these for high load or high angle applications as these have a small housing and races.

MALE ROD
           ENDS

 B
DIA.		 D
DIA.		 W
WIDTH		 T
WIDTH		 BALL
DIA.		 A
LGTH		 N
THD.		 C
LGTH		 a
MIS.
ANGLE		 ULT.
STATIC
RADIAL
LOAD
(lbs)		 APPROX.
WEIGHT
(lbs)
RIGHT
HAND
PART NO.		 LEFT
HAND
PART NO.		 +.0025
-.0005		 +.010
-.010		 +.005
-.005		 REF. REF. +.015
-.015		 UNF
3A		 +.062
-.031		 REF.
CM3* CML3* .1900 .625 .312 .234 .437 1.250 10-32 .750 20 1,210 .03
CM4* CML4* .2500 .750 .375 .250 .500 1.562 1/4-28 1.000 27 2,225 .04
CM5* CML5* .3125 .875 .437 .312 .625 1.875 5/16-24 1.250 22 3,600 .07
CM6 CML6 .3750 1.000 .500 .359 .719 1.938 3/8-24 1.250 22 5,100 .11
CM7 CML7 .4375 1.125 .562 .406 .812 2.125 7/16-20 1.375 21 6,402 .15
CM8 CML8 .5000 1.312 .625 .453 .937 2.438 1/2-20 1.500 20 8,386 .24
CM10 CML10 .6250 1.500 .750 .484 1.125 2.625 5/8-18 1.625 26 9,813 .36
CM12 CML12 .7500 1.750 .875 .593 1.312 2.875 3/4-16 1.750 24 14,290 .57



Body - Low carbon steel, zince plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
