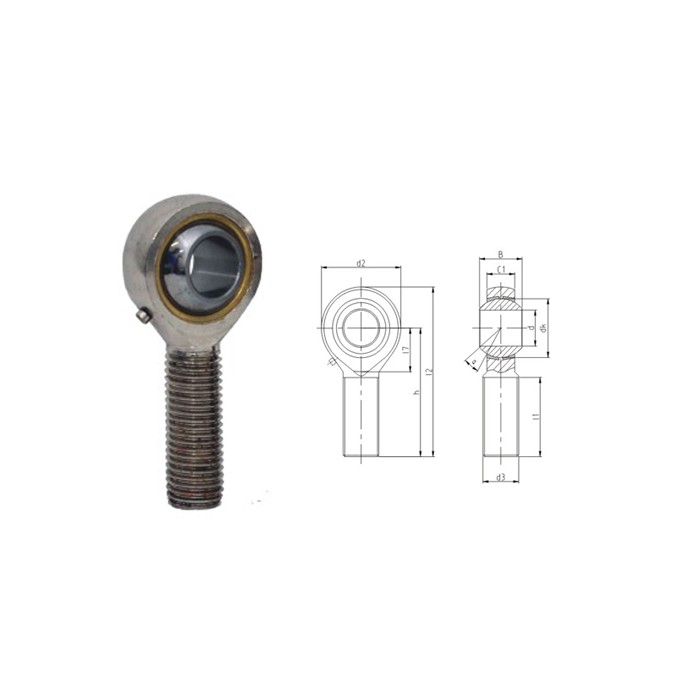

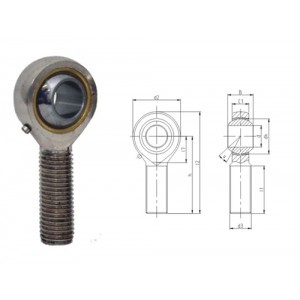

POSB8 inch Rod End Bearing

POSB8 inch Rod End Bearing

As series PHS..and POS.., but in inch dimensions.

PHSAB Series rod end
PHSB3 PHSB4 PHSB5 PHSB6 PHSB8 PHSB10 PHSB12 PHSB14 PHSB16
POSB Series rod end
POSB3 POSB4 POSB5 POSB6 POSB8 POSB10 POSB12 POSB14 POSB16

More details


As series PHS..and POS.., but in inch dimensions rod end.

Sliding contact surfaces:
Steel/Bronze





















Bearing
Number
Load
ratings (N)		 ≈a° Unit
Weight
(kg)
Dimensions(mm)
d d2 B C1 d3 L2 L1 h d1 Dyna-
mic		 S-
tatic
POSB3 .1900
4.826		 .625
15.88		 .312
7.92		 .250
6.35		 .1900
-32UNF		 1.536
39.70		 .750
19.05		 1.25
31.75		 .306
7.77		 780 1120 13 0.014
POSB4 .2500
6.350		 .750
19.05		 .375
9.53		 .281
7.14		 .2500
-28UNF		 1.937
49.20		 1.000
25.40		 1.562
39.67		 .355
9.02		 1030 2040 13 0.023
POSB5 .3125
7.938		 .875
22.23		 .437
11.10		 .344
8.74		 .3125
-24UNF		 2.312
58.72		 1.250
31.75		 1.875
47.63		 .447
11.35		 1530 3270 13 0.036
POSB6 .3750
9.525		 1.0000
25.40		 .500
12.70		 .406
10.31		 .3750
-24UNF		 2.438
61.93		 1.250
31.75		 1.938
49.23		 .517
13.13		 2080 4980 13 0.054
POSB7 .4375
11.11		 1.125
28.58		 .562
14.27		 .437
11.10		 .4375
-20UNF		 2.688
68.28		 1.375
34.93		 2.125
53.98		 .586
14.88		 2520 6020 13 0.077
POSB8 .5000
12.700		 1.312
33.32		 .625
15.88		 .500
12.70		 .5000
-20UNF		 3.094
78.59		 1.500
38.1		 2.438
61.93		 .698
17.73		 3300 8370 13 0.127
POSB10 .6250
15.875		 1.500
38.10		 .750
19.05		 .562
14.27		 .6250
-18UNF		 3.375
85.73		 1.625
41.28		 2.625
66.68		 .839
21.31		 4500 9050 13 0.186
POSB12 .7500
19.050		 1.750
44.46		 .875
22.23		 .687
17.45		 .7500
-16UNF		 3.75
95.25		 1.750
44.45		 2.875
73.03		 .978
24.84		 6410 12700 13 0.295
POSB16 1.0000
25.400		 2.750
69.85		 1.375
34.93		 1.000
25.40		 1.2500
-12UNF		 5.50
139.7		 2.125
53.98		 4.125
104.8		 1.269
32.23		 13300 19500 13 1.129














Remark:












1. The listed load rating,
unit weight is for reference.






2. For left-hand thread, suffix "L" is added to bearing number and thread sign,
e.g. POSB 12L 3/4-16L-2A





Male and Female Left and Right hand thread Metric and Inches sizes rod end available

As a professional manufacturer for bearing products with 10 year experience, we can offer wide range of high-precision bearing products, such as female thread, male thread, self-lubricating, combination series and so on.
