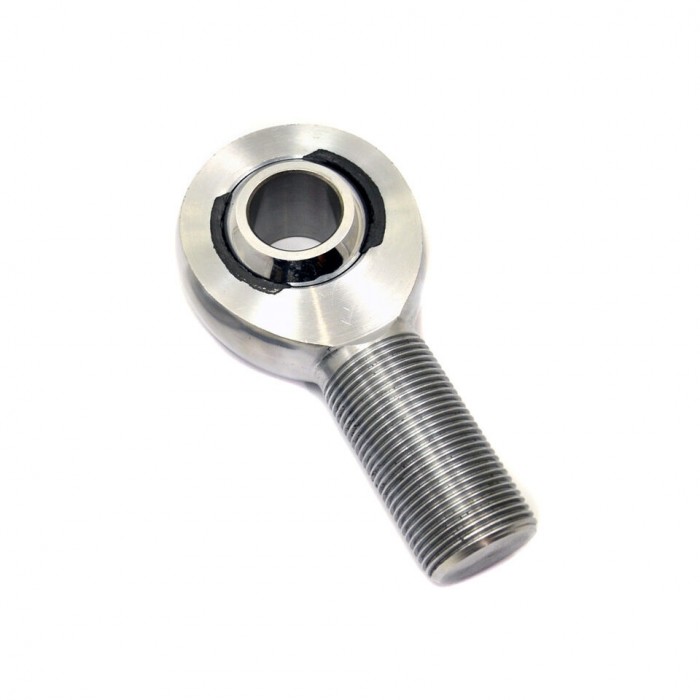

XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

More details


BALL

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

RACE

  • Nylon/PTFE
  • Self-Lubricating
  • Self-Sealing

BODY

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

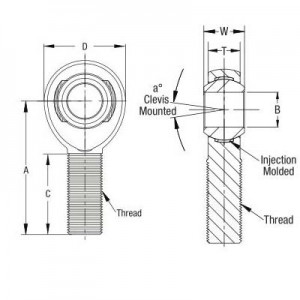

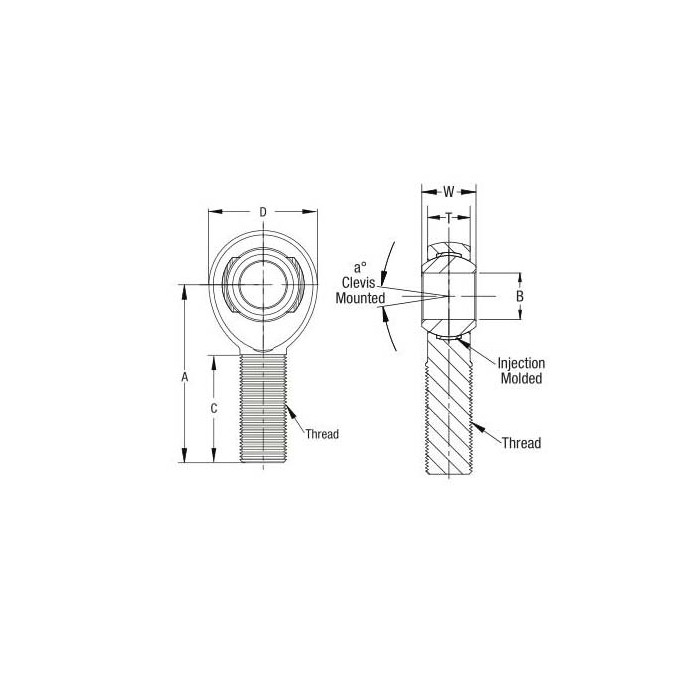

Right

Hand

Left   Hand



B

+ .0015

- .0005



W

± .005



T

± .005



A

± .015



D

± .010



Ball

Dia.

Ref.



C

+ .062

- .031



Thread

UNF-3A



Misalign.

Angle



Ult. Radial

Static

Load Lbs.



Approx.

Brg. Wgt.

Lbs.



XMR3

XML3

0.1900

0.312

0.250

1.250

0.625

 0.437

 0.750

 10-32

13

2,851

0.03



XMR4

XML4

 0.2500

0.375

0.281

1.562

0.75

0.5

1

1/4-28

16

5,260

0.04

XMR4-5

XML4-5

0.25

0.375

0.281

1.875

0.875

0.5

1.25

5/16-24

13

8,452

0.07

XMR4-5

XML4-5

0.25

0.375

0.281

1.875

0.875

0.500

1.25

5/16-24

13

8,452

0.07

XMR5

XML5

0.3125

0.437

0.344

1.875

0.875

0.625

1.25

5/16-24

14

7,639

0.07

XMR5-6

XML5-6

0.3125

0.437

0.344

1.938

1

0.625

1.25

 3/8-24

12

10,382

0.11

XMR6

XML6

0.375

0.5

0.406

1.938

1

0.719

1.25

 3/8-24

12

9,544

0.11

XMR6-7

XML6-7

0.375

0.5

0.406

2.125

1.125

0.719

1.375

7/16-20

10

14,006

0.15

XMR7

XML7

0.4375

0.562

0.437

2.125

1.125

0.812

1.375

7/16-20

14

10,285

0.15

XMR7-8

XML7-8

0.4375

0.562

0.437

2.438

1.312

0.812

1.5

1/2-20

12

18,761

0.24

XMR8

XML8

0.5

0.625

0.5

2.438

1.312

0.937

1.5

1/2-20

12

16,238

0.24

XMR8-10

XML8-10

0.5

0.625

0.5

2.625

1.5

0.937

1.625

 5/8-18

10

23,542

0.36

XMR8-12

XML8-12

0.5

0.75

0.562

2.875

1.75

0.937

1.75

3/4-16

16

32,457

0.42

XMR10

XML10

0.625

0.75

0.562

2.625

1.5

1.125

1.625

 5/8-18

16

17,955

0.36

XMR10-12

XML10-12

0.625

0.75

0.562

2.875

1.75

1.125

1.75

3/4-16

13

31,680

0.57

XMR12

XML12

0.75

0.875

0.687

2.875

1.75

1.312

1.75

3/4-16

14

28,081

0.57

XMR12-14

XML12-14

0.75

0.875

0.687

3.375

2

1.312

1.875

7/8-14

12

43,486

0.88

XMR14

XML14

0.875

0.875

0.765

3.375

2

1.375

2

7/8-14

7

45,051

0.88
