GEK60XS-2RS Metric Spherical Plain Bearing

GEK60XS-2RS Metric Spherical Plain Bearing

GEK60XS-2RS Metric Spherical Plain Bearing

More details

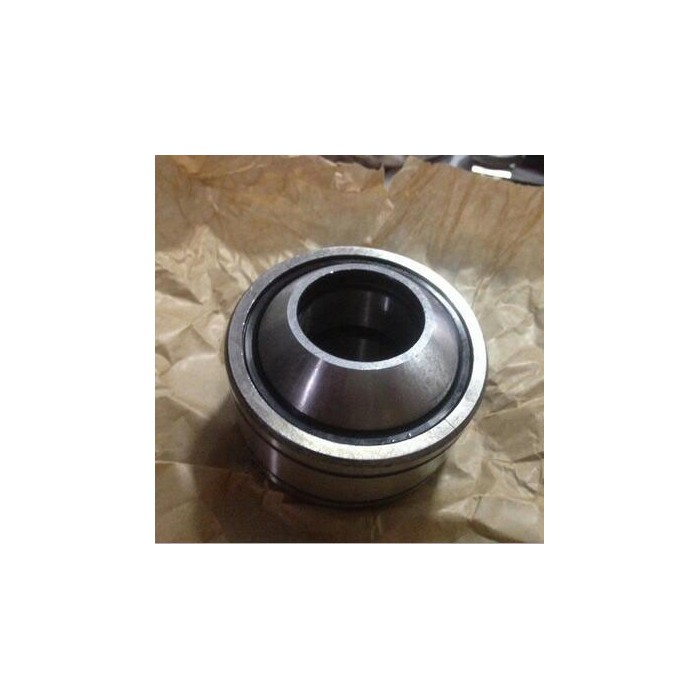

GEK60XS-2RS Metric Spherical Plain Bearing



GEK25XS-2RS Spherical plain Radial Bearing,GEK25XS-2RS Spherical Bearing,GEK25XS-2RS



Design Characteristics :

Outer ring axially split twice, held together by retaining rings.Outer ring of carbon chromium steel, hardened and fitted with seals at both sides.Inner ring of carbon chromium steel,hardened,sliding surface treated with hard chromium plating.

Sliding Contact Surfaces : Steel/Steel.

Operating Temperature :  -20℃ ~ +120℃

Bearing Number                   Dimensions (mm) Load Ratings (KN) Weight
(KG)
d D B C α˚ Dynamic Static
GEK25XS-2RS 25 68 40 28 19 117 590 0.707
GEK30XS-2RS 30 70 47 32 19 163 813 0.814
GEK35XS-2RS 35 80 54 38 17 226 1130 1.23
GEK40XS-2RS 40 90 64 44 19 298 1490 2.00
GEK45XS-2RS 45 100 72 52 17 398 1990 2.84
GEK50XS-2RS 50 110 80 58 17 493 2450 3.81
GEK55XS-2RS 55 125 90 64 19 598 2990 5.49
GEK60XS-2RS 60 135 98 72 17 732 3660 6.93
