PART NO.

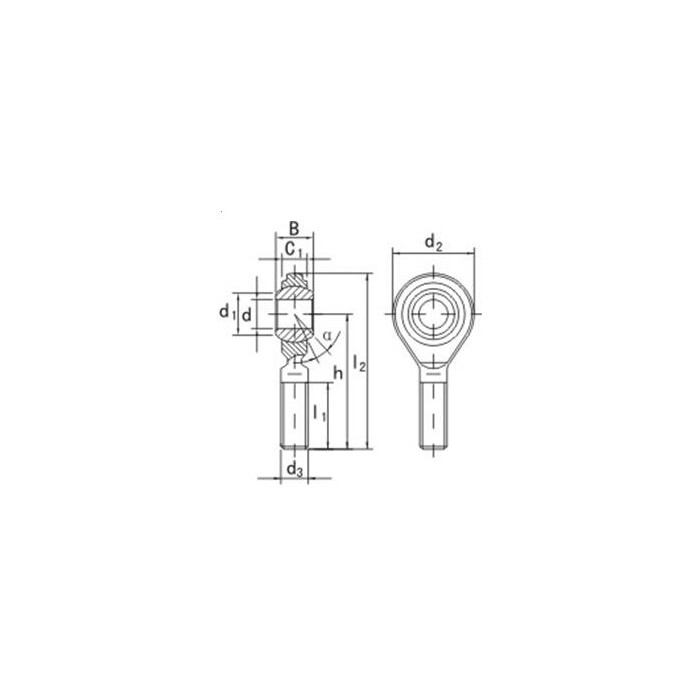

DIMENSIONS    (mm)

LOAD RATINGS(KN)

WEIGHT (kg)

d

B

C1

L1

d2

h

L2

d1

R1s

a

Dynamic

Static

Cr

Cor

SAZP4S

4.826

7.92

6.35

19.05

15.88

31.75

39.7

7.8

0.3

10

3.4

3.8

0.013

SAZP6S

6.35

9.525

7.14

25.4

19.05

36.67

49.2

8.6

0.3

13

4.5

6.6

0.022

SAZP7S

7.938

11.1

8.74

31.75

22.23

47.63

58.72

11.4

0.3

10

6.9

8.4

0.037

SAZP9S

9.525

12.7

10.31

21.75

25.4

49.23

61.93

13.1

0.6

9

9.4

10

0.055

SAZP11S

11.11

14.28

11.1

34.95

28.58

53.98

68.28

14.9

0.6

11

11

13

0.078

SAZP12S

12.7

15.88

12.7

38.1

33.32

61.93

78.59

17.7

0.6

9

15

19

0.12

SAZP15S

15.88

19.05

14.27

41.28

38.1

68.28

85.73

21.3

0.6

11

20

21

0.18

SAZP19S

19.05

22.23

17.45

44.45

44.45

73.03

95.25

24.8

0.6

10

29

29

0.29

SAZP25S

25.4

34.93

25.4

53.98

69.85

104.8

139.7

32.2

0.6

14

60

101

1.1
