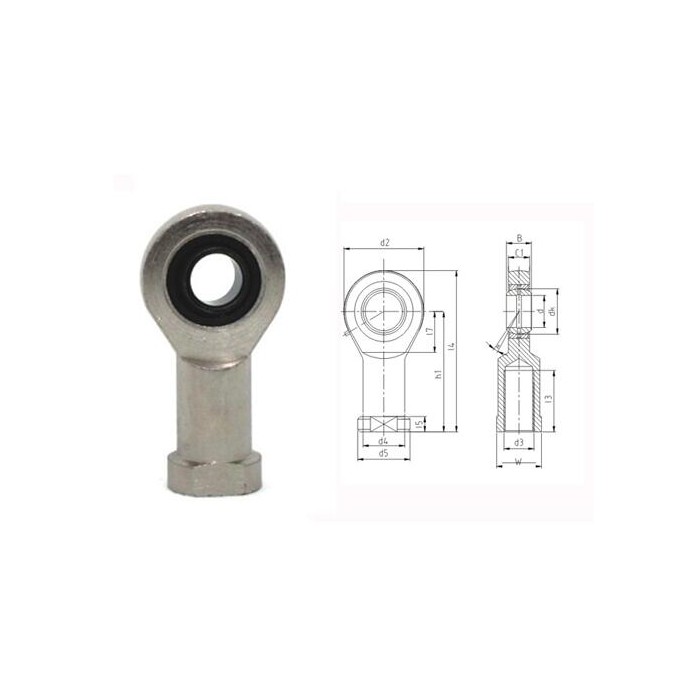

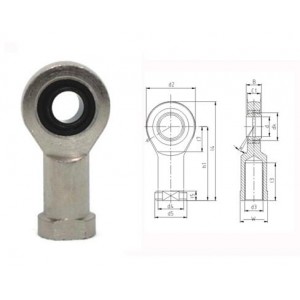

Assembled rod end bearing, it consists of rod end body and a spherical
plain bearing GE..E or GE..ES. Body’s made of carbon steel, zinc plated,
with male or female thread. It can be relubricated via a nipple or a hole
in the rod end, except those with the E design.

More details


Assembled rod end bearing, it consists of rod end body and a spherical
plain bearing GE..E or GE..ES. Body’s made of carbon steel, zinc plated,
with male or female thread. It can be relubricated via a nipple or a hole
in the rod end, except those with the E design.

SI10E rod end,SI2ES rod end,SI20E rod end,SI20ES rod end,SI30E rod end,SI30ES rod end

Sliding contact
surfaces:		 Steel/Steel
Bearing
Number		   Load
ratings
KN		 ≈a° Unit
Wei-ght
(kg)
Dimensions(mm)
d B dk C1 d2 d3 h1 l3 l4 l5 l7 w d4 d5 Dyn-
amic		 S-
tatic
SI5E 5 6 10 4.5 21 M5X0.8 30 11 40.5 5 11.5 10 10 13 3.4 8.1 13 0.021
SI6E 6 6 10 4.5 21 M6X1 30 11 40.5 5 11.5 11 11 13 3.4 8.1 13 0.021
SI8E 8 8 13 6.5 24 M8
X1.25		 36 15 48 5 13 13 13 16 5.5 12.9 15 0.039
SI10E 10 9 16 7.5 29 M10
X1.5		 43 20 57.5 5.5 15 16 16 19 8.1 17.6 12 0.065
SI12E 12 10 18 8.5 34 M12
X1.75		 50 23 67 7 18 18 19 22 10 24.5 10 0.096
SI15ES 15 12 22 10.5 40 M14X2 61 30 81 8 21 21 22 26 16 36 8 0.16
SI17ES 17 14 25 11.5 46 M16X2 67 34 90 10 23 27 25 29 21 45 10 0.24
SI20ES 20 16 29 13.5 53 M20
X1.5		 77 40 103.5 10 25.5 30 28 34 30 60 9 0.35
SI25ES 25 20 35.5 18 64 M24X2 94 48 126 12 33 36 35 42 48 83 7 0.66
SI30ES 30 22 40.7 20 73 M30X2 110 56 146.5 15 37.5 46 42 50 62.2 110 6 0.98
SI35ES 35 25 47 22 82 M36X3 125 60 166 15 40 55 48 58 79 146 6 1.5
SI40ES 40 28 53 24 92 M39X3 142 65 188 18 47 52 52 65 99 180 7 2.1
SI45ES 45 32 60 28 102 M42X3 145 65 196 20 52 65 58 70 127 240 7 2.7
SI50ES 50 35 66 31 112 M45X3 160 68 216 20 57 70 62 75 156 290 6 3.5
SI60ES 60 44 80 39 135 M52X3 175 70 242.5 20 68.5 80 70 88 245 450 6 5.6
SI70ES 70 49 92 43 160 M56X4 200 80 280 20 81 85 80 98 313 610 6 8.3
SI80ES 80 55 105 48 180 M64X4 230 85 320 25 91 95 95 110 400 750 6 13

Remark:
1. The listed load rating,
unit weight is for reference.
2. For left-hand thread, suffix "L" is added to bearing number and thread sign,
e.g. SIL20ES M20X1.5L-6H
