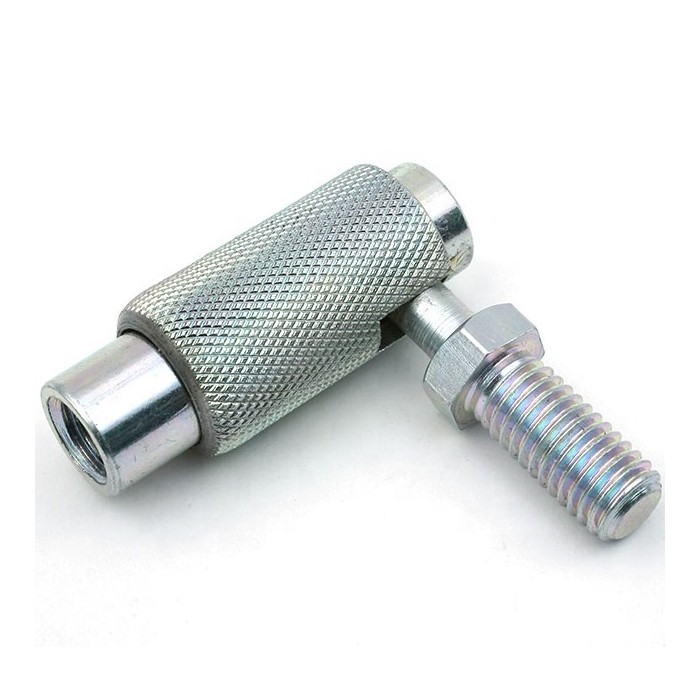

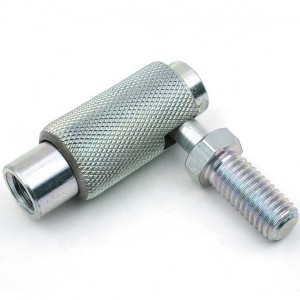

QD1/QRM carbon steel zinc plated yellow quick disconnect ball joint

QD1/QRM carbon steel zinc plated yellow quick disconnect ball joint

QD1/QRM carbon steel zinc plated quick disconnect ball joint



Material
Housing: Carbon Steel 1045

Ball stud: Carbon Steel 1045

Shell: Carbon:1020 carbon Steel

Spring: Stainless Steel

More details

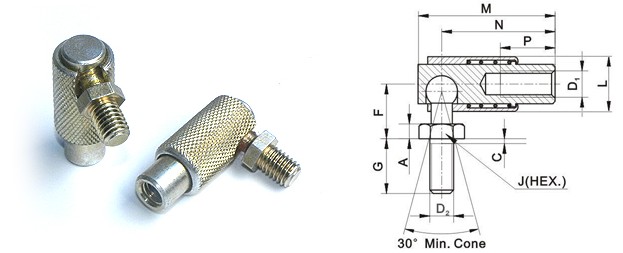

Part No.

housing thread

stud thread

     A

     F

    G

    J

     L

      M

     N

       P

QD1 187

10-32-2B

10-32-2A

0.125

0.4375

0.4375

0.3125

0.4375

1.094

0.9063

0.4375

QD1 250

1/4-28-2B

1/4-28-2A

0.125

0.469

0.562

0.375

0.562

1.25

0.969

0.61

QD1 312

5/16-24-2B

5/16-24-2A

0.156

0.531

0.687

0.437

0.625

1.453

1.125

0.63

QD1 375

3/8-24-2B

3/8-24-2A

0.187

0.687

0.875

0.5

0.75

1.75

1.375

0.812

QD1 500

1/2-20-2B

1/2-20-2A

0.25

0.875

1.125

0.625

    1

2.53

2.03

        1



Material
Housing: Carbon Steel 1045

Ball stud: Carbon Steel 1045

Shell: Carbon:1020 carbon Steel

Spring: Stainless Steel



Surface protection
Electroplated galvanized, passivated in white-blue or yellow





Filled with lubricant and circle swing agilely without any block

Unless otherwise specified, all dimensions are in inches
