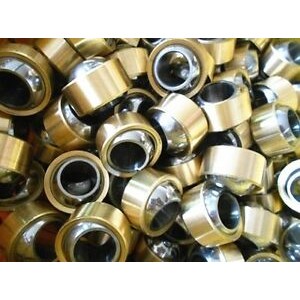

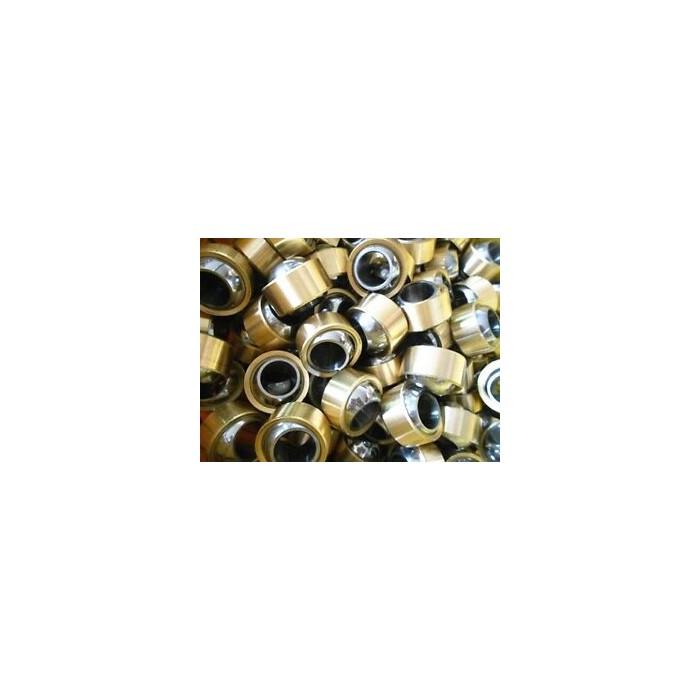

GE12PW bearing radial spherical plain bearing GE12-PW

GE12PW bearing radial spherical plain bearing GE12-PW

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

More details




Model d(mm) D(mm) B(mm) C(mm) Weight(kg)
GE5PW 5 13 8 6 0.007 GE5-PW
GE6PW 6 16 9 6.75 0.01 GE6-PW
GE8PW 8 19 12 9 0.016 GE8-PW
GE10PW 10 22 14 10.5 0.031 GE10-PW
GE12PW 12 26 16 12 0.065 GE12-PW
GE14PW 14 28 19 13.5 0.09 GE14-PW
GE16PW 16 32 21 15 0.1 GE16-PW
GE18PW 18 35 23 16.5 0.125 GE18-PW
GE20PW 20 40 25 18 0.18 GE20-PW
GE22PW 22 42 28 20 0.21 GE22-PW
GE25PW 25 47 31 22 0.295 GE25-PW
GE30PW 30 55 37 25 0.425 GE30-PW
GE35PW 35 43 28 62 0.5 GE35-PW
GE40PW 40 49 33 75 0.9 GE40-PW
GE50PW 50 60 45 90 1.64 GE50-PW

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.
