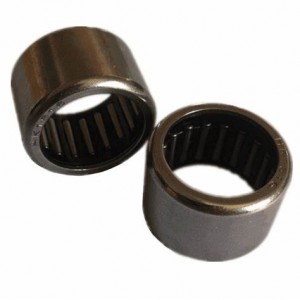

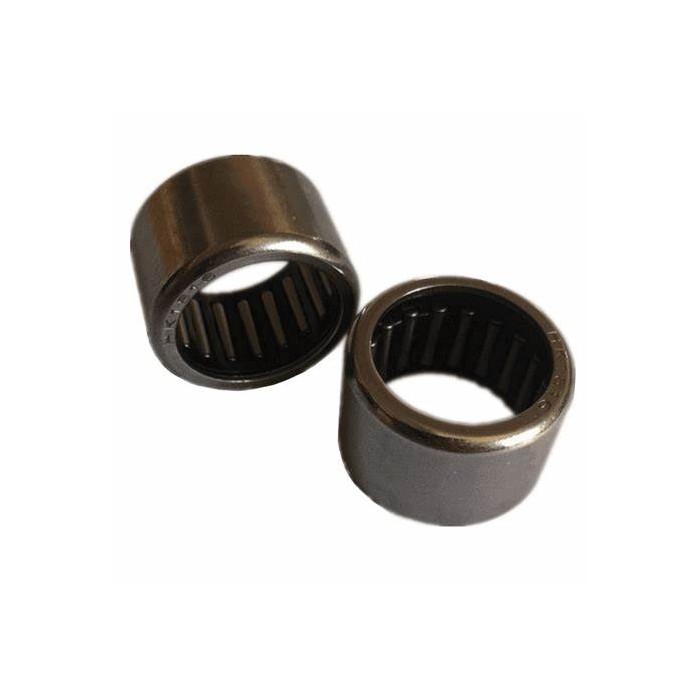

Swing arm bearings shock linkage bearing HK1816

Swing arm bearings shock linkage bearing HK1816

Specification:
Model: HK1816 needle bearing
Drawn Cup Meterial: ST14 Steel
Cage Meterial: ST13 Steel
Needle Roller Meterial: Chromium Steel (GCr15)
Bore Diameter (Fw): 18mm
Outside Diameter (D): 24mm
Width: 16mm
Static Load Capacity (Cor): 15.3kN
Dynamic Load Capacity (Cr): 10.6kN
Maximum Rotational Speed (Oil): 12000rpm

Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.


These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.


Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.


For various applications such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
