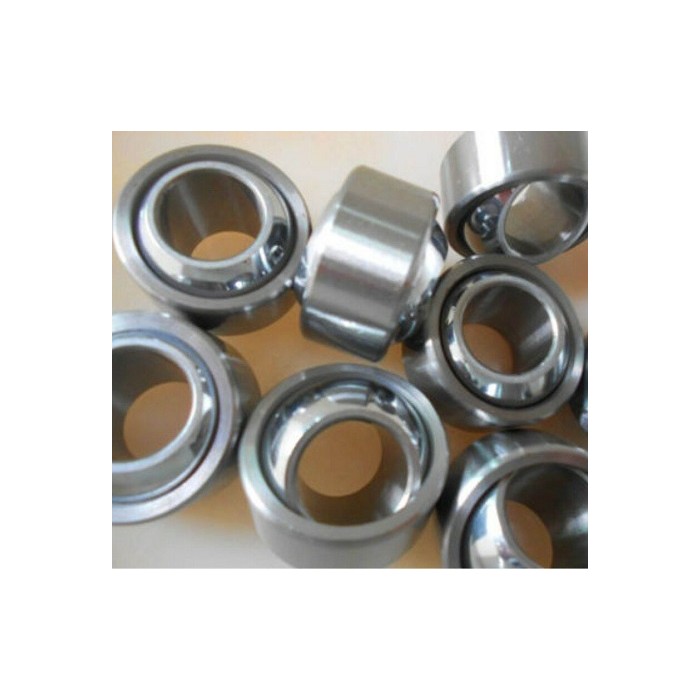

GEBJ S Radial Spherical Plain Bearing

GEBJ S Radial Spherical Plain Bearing

GEBJ S Series Radial Spherical Plain Bearing:

Outer ring pressed around inner ring.

- Sliding contact surface: steel on steel

- Maintenance Free - Low Friction

GEBJ5S, GEBJ6S, GEBJ8S, GEBJ12S, GEBJ14S,GEBJ18S,GEBJ20S, GEBJ22S,GEBJ30S

More details




Part   No.

Dimensions mm

load   ratings KN

weight kg

d

D

B

C

d1

R1s

R2s

α

dyn.

stat.





min

min

min

≈

Cr

Cor

GEBJ5S

5

13

8

6

7.7

0.3

0.3

13

3.2

9

0.007

GEBJ6S

6

16

9

6.75

9

0.3

0.3

13

4.1

12

0.01

GEBJ8S

8

19

12

9

10.4

0.3

0.3

13

6.5

20

0.016

GEBJ10S

10

22

14

10.5

12.9

0.3

0.6

13

9.6

28

0.031

GEBJ12S

12

26

16

12

15.4

0.3

0.6

13

12

37

0.055

GEBJ14S

14

28

19

13.5

16.9

0.3

0.6

15

16

49

0.078

GEBJ16S

16

32

21

15

19.4

0.3

0.6

15

20

61

0.095

GEBJ18S

18

35

23

16.5

21.9

0.3

0.6

15

25

74

0.14

GEBJ20S

20

40

25

18

24.4

0.3

0.6

15

30

89

0.18

GEBJ22S

22

42

28

20

25.8

0.3

0.6

15

36

108

0.21

GEBJ25S

25

47

31

22

29.6

0.6

0.6

15

45

130

0.35

GEBJ30S

30

55

37

25

34.8

0.6

0.6

15

61

178

0.56



GEBJ S Series Radial Spherical Plain Bearing:

Outer ring pressed around inner ring.

- Sliding contact surface: steel on steel

- Maintenance Free - Low Friction
