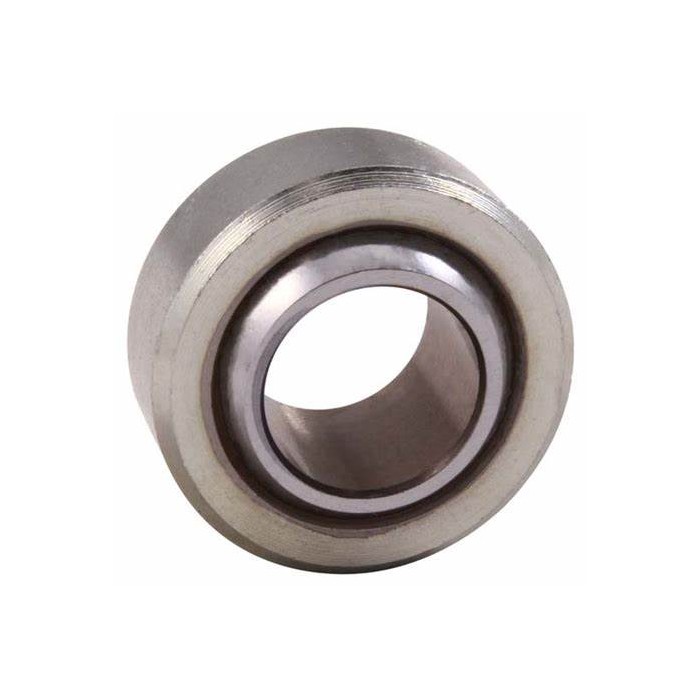

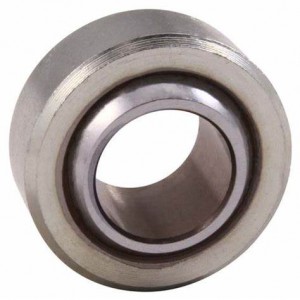

Race Radial spherical plain bearing

Race Radial spherical plain bearing

Radial spherical plain bearing

- outer ring spherical paste

  COM..T/HCOM..T

COM3T,COM4T,COM5T,COM6T,COM7T,COM8T,COM9T,COM10T,

COM12T,COM14T,COM16T,HCOM16T,HCOM19T,HCOM20T Radial spherical plain bearing



More details


Radial spherical plain bearing



COM3T,COM4T,COM5T,COM6T,COM7T,COM8T,COM9T,COM10T,

COM12T,COM14T,COM16T,HCOM16T,HCOM19T,HCOM20T


Radial spherical plain bearing
- outer ring spherical paste

  COM..T/HCOM..T

Model

Size mm

Load KN

Weight kg



d

d1

B

C

D

dk

m

α

 movement



















≈

C



COM3T

4.826

7.44

7.14

5.54

14.29

10.31

0.381

11

21.68

0.006

COM4T

6.350

9.25

8.71

6.35

16.67

12.70

0.560

13.5

33.02

0.010

COM5T

7.938

10.64

9.53

7.14

19.05

14.27

0.810

12

43.20

0.014

COM6T

9.525

13.11

10.31

7.92

20.64

16.66

0.810

10

56.04

0.017

COM7T

11.113

13.46

11.10

8.71

23.02

17.45

0.810

8.0

63.07

0.021

COM8T

12.700

16.26

12.70

9.91

25.40

20.65

0.810

9.5

88.39

0.029

COM9T

14.288

18.03

14.27

11.10

27.78

23.01

0.810

9.5

110.94

0.039

COM10T

15.875

19.81

15.88

12.70

30.16

25.40

0.810

8.5

141.96

0.050

COM12T

19.050

23.37

19.05

15.06

36.51

30.15

1.120

9.0

212.94

0.093

COM14T

22.225

24.89

22.23

17.86

39.69

33.32

1.120

9.5

279.93

0.119

COM16T

25.400

28.40

25.40

20.24

44.45

38.10

1.120

10

368.25

0.175

HCOM16T

25.400

34.54

25.40

19.84

50.80

42.85

0.810

9.0

472.46

0.251

HCOM19T

30.163

40.89

30.15

23.80

60.33

50.80

0.810

8.5

672.00

0.406

HCOM20T

31.750

40.89

30.15

23.80

60.33

50.80

0.810

8.5

672.00

0.406
