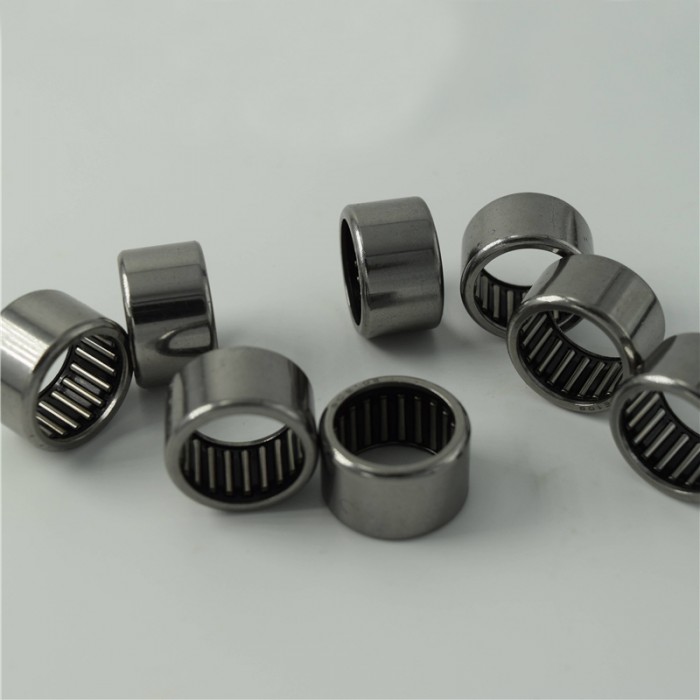

HK2526 Drawn Cup Needle Roller Bearing 25x32x26mm

Drawn cup type needle roller bearing with open end 25mm Inside x 32mm outside x 26mm wide

Yousen Drawn cup needle roller bearings with open ends and with closed ends are complete units comprising thin-walled, drawn cup outer rings and needle roller and cage assemblies. Drawn cup needle roller bearings are also available in a full complement design.

Due to the thin-walled outer cup and the design without an inner ring, drawn cup needle roller bearings have extremely small radial dimensions. They have high load carrying capacity, are suitable for high speeds and are particularly easy to fit. If axial means of location such as shoulders, snap rings etc. are not used, the housing bore can be produced easily and particularly economically.

Drawn cup needle roller bearings require a hardened and ground bearing raceway on the shaft. If the shaft cannot be used as a raceway, they can be combined with inner rings.

Dimensions
Fw: 25mm
D: 32mm
C: 26mm
r min: 0.8mm

Basic load ratings dynamic: 24.2kn
Basic load ratings static: 45kn
Fatigue load limit: 5.5kn
Speed ratings reference speed: 9500r/min
Speed ratings Limiting speed: 11000r/min

Mass: 0.044kg
