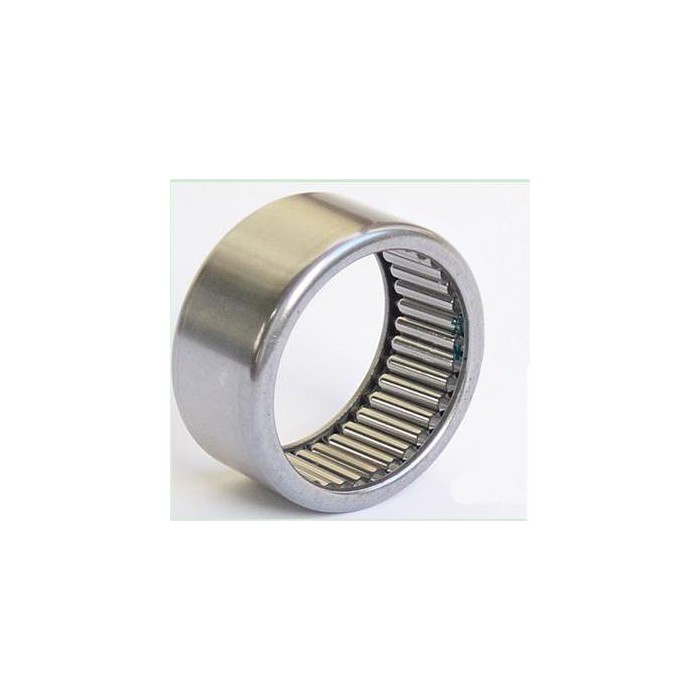

Drawn Cup Needle Bearing B-34

Drawn Cup Needle Bearing B-34

Drawn Cup Needle Bearing B-34

Drawn Cup Needle Bearing B-34,B34 Needle roller Bearing,Needle Bearing B34

More details


Drawn Cup Needle Bearing B-34

Drawn Cup Needle Bearing B-34,B34 Needle roller Bearing,Needle Bearing B34



Product Details
Bore Fraction 3/16"
Bore 0.1875
OD Fraction 11/32"
OD 0.3440
W Fraction 1/4"
W 0.2500
Static Load Rating 453
Working Load 284
Interchange TORRINGTON B34, INA S34, KAYDON CS34
Weight 0.200

Drawn Cup Needle Bearing B Series
The original drawn cup needle roller bearing, as invented and introduced by Torrington, employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings




Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B-34 need, prices or technical specifications? We always work hard to give you the best products and service.
