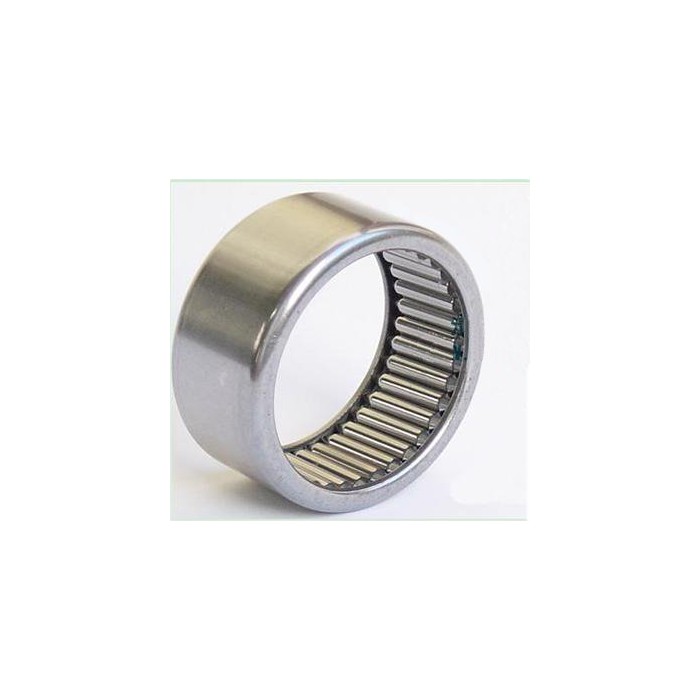

Drawn Cup Needle Bearing B-57

Drawn Cup Needle Bearing B-57

Drawn Cup Needle Bearing B-57

Drawn Cup Needle Bearing B-57,B57 Needle roller Bearing,needle bearing B57

More details


Drawn Cup Needle Bearing B-57

Drawn Cup Needle Bearing B-57,B57 Needle roller Bearing,needle bearing B57

Product Details

Bore Fraction 5/16"
Bore 0.3120
OD Fraction 1/2"
OD 0.5000
W Fraction 7/16"
W 0.4380
Static Load Rating 1,770
Working Load 1,040
Interchange TORRINGTON B57, INA S57, KAYDON CS57
Weight 0.010



Drawn Cup Needle Bearing B Series
The drawn cup needle roller bearing,employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings
Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B Series need, prices or technical specifications? We always work hard to give you the best products and service.
