Home Drawn Cup Needle Bearing B-1516

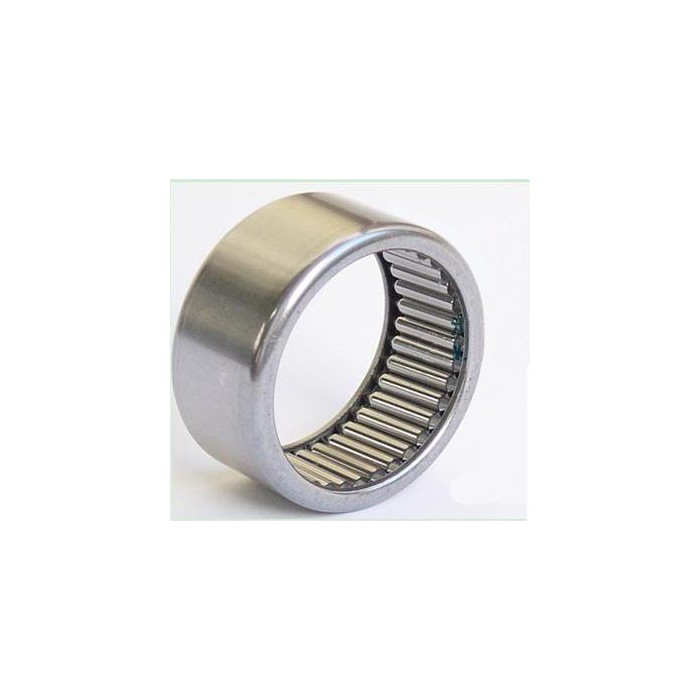

Drawn Cup Needle Bearing B-1516
Product Details
Drawn Cup Needle Bearing B-1516,Needle Bearing B1516,B1516 Needle roller Bearing
| Bore Fraction | 15/16" |
| Bore | 0.9375 |
| OD Fraction | 1-3/16" |
| OD | 1.1875 |
| W Fraction | 1" |
| W | 1.0000 |
| Static Load Rating | 15,400 |
| Working Load | 8,300 |
| Interchange | TORRINGTON B1516, INA S1516, KAYDON CS1516 |
| Weight | 0.030 |
Drawn Cup Needle Bearing B Series
The drawn cup needle roller bearing,employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings
Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B Series need, prices or technical specifications? We always work hard to give you the best products and service.
Shanghai Yousen Bearing Co.,ltd.
www.sysbearing.com
sales@sysbearing.com
Chinese Professional full complement drawn cup bearing manufacturer
