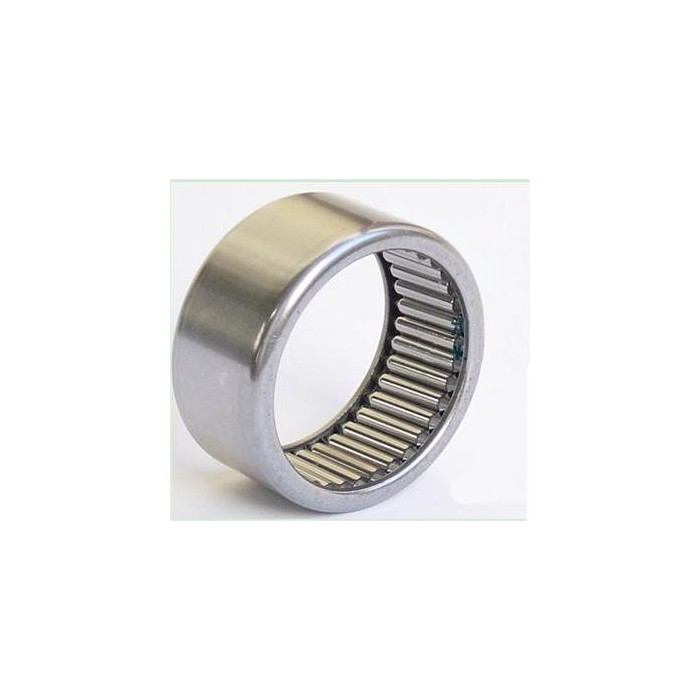

Drawn Cup Needle Bearing B-188

Drawn Cup Needle Bearing B-188

Drawn Cup Needle Bearing B-188

More details


Drawn Cup Needle Bearing B-188

Product Details

Bore Fraction 1-1/8"
Bore 1.1250
OD Fraction 1-3/8"
OD 1.3750
W Fraction 1/2"
W 0.5000
Static Load Rating 7,190
Working Load 3,810
Interchange TORRINGTON B188, INA S188, KAYDON CS188
Weight 0.030



Drawn Cup Needle Bearing B Series
The drawn cup needle roller bearing,employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings
Please, contact us if you have detailed questions regarding Drawn Cup Needle Bearing B Series need, prices or technical specifications? We always work hard to give you the best products and service.
