QR BALL JOINTS

QR BALL JOINTS

QR187 BALL JOINTS,QR250 BALL JOINTS,QR312 BALL JOINTS,QR375 BALL JOINTS

Material : Carbon steel 1045           Spring : stainless steel
Filled with lubricant and swing smoothly
Surface treatment: galvanized，passivated in zinc/yellow

Material : Carbon steel 1045

 Spring : stainless steel

Filled with lubricant and swing smoothly

Surface treatment: galvanized，passivated in zinc/yellow



More details

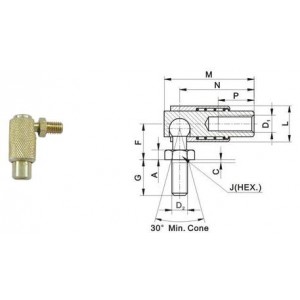

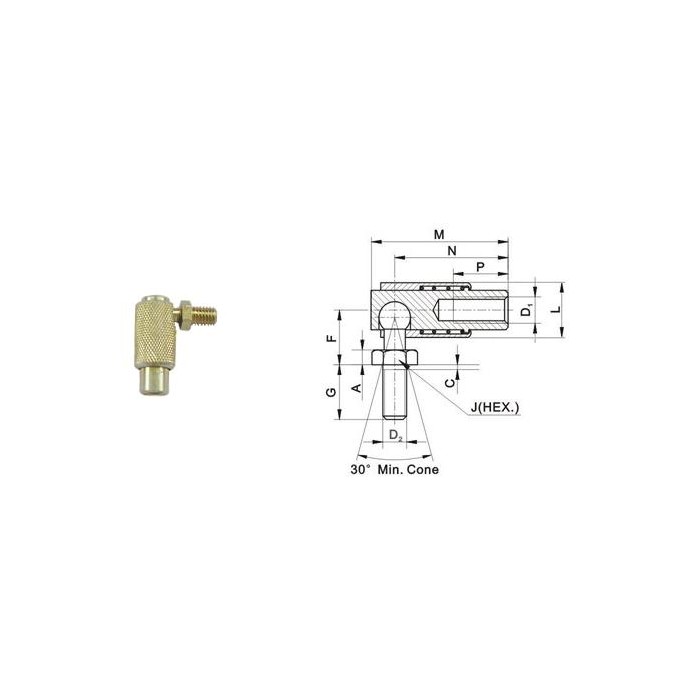

Item

 Dimensions

Min. Pull Test

Min. Shear



D1

D2

A

C

F

G

J

L

M

N

P

lb

lb

QR 187

10-32-2B

10-32-2A

.125

.063

.438

.438

.312

.438

1.094

.906

.438

430

650

QR 250

1/4-28-2B

1/4-28-2A

.125

.063

.469

.562

.375

.562

1.25

.969

.531

950

800

QR 312

5/16-24-2B

5/16-24-2A

.156

.094

.531

.687

.437

.625

1.453

1.125

.605

1000

1000

QR 375

3/8-24-2B

3/8-24-2A

.187

.094

.687

.875

.5

.75

1.75

1.375

.812

1250

1250

QR 500

1/2-20-2B

1/2-20-2A

.25

.094

.875

1.125

.625

1.0

2.53

2.03

1.0

1900

2000
