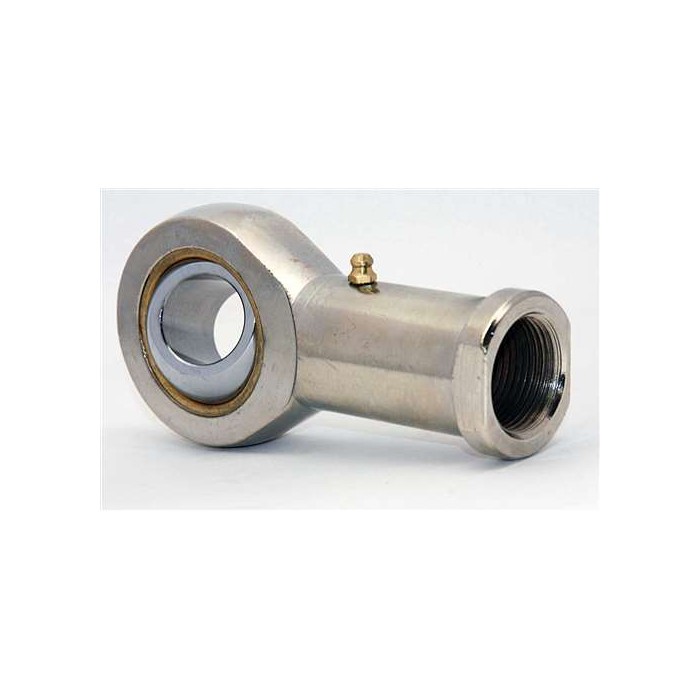

PHSB10 Rod End Bearing
- View full size
Products Category
Solution
- About us
- Contact us
- FAQ
- Cheap Hosting
- C Series Carbon Steel Rod Ends
- Ball Joint Linkages
- needle roller bearing...
- PHS POS Steel Rod End...
- GE..ES Series Bearings...
- XM Male Chromoly Steel...
- Gewrichtslagers -...
- NEEDLE ROLLER BEARINGS
- Hose Fittings
- rod end bearings
- Rod Ends 2019
- Spherical Plain Bearings...
- Needle Roller Bearings
- Automobile Bearings 2019
- Wheel Bearing & Hub...
- What Is a Rod End or heim...
- The material for the bearings
- WHAT IS DOUBLE ROW ANGULAR...
- What is Spherical Plain...
- what is Rod Ends or heim...
- Link Balls (RBL, RBI, TBS,...
- How do you accurately...
- Do you know Thrust Bearings?
- What is rod end bearing or...
- Motorcycle needle roller...
- Needle Roller Bearing, Full...
- Shanghai Yousen Bearing...
- Do you know needle roller...
- Do you know what is Needle...
- Do you know POS or POSB...
- Johnny Joint
Contact info
Viewed products
Home PHSB10 Rod End Bearing
PHSB10 Rod End Bearing,Rod End PHSB10 China,
Rod End Bearing PHSB10
|
Rod-end number
|
Mass (Ref.)
lb
|
Boll dia
inch (mm) |
Radial static load capacity Cs kgg
|
||||||||||||||
|
d
|
Thread S |
D
|
B
|
B1
|
d1
|
L
|
I
|
L1
|
L2
|
W
|
D1
|
D2
|
r
|
||||
| PHSB 4 | .05 | .2500 (6.350) |
.2500 -28UNF |
.750 (19.05) |
.281 (7.14) |
.375 (9.53) |
.355 (9.02) |
1.687 (42.85) |
.187 (4.75) |
1.312 (33.32) |
.750 (19.05) |
.375 (9.53) |
.375 (9.53) |
.468 (11.89) |
.0.20 (0.5) |
33/64 (13.097) |
3000 |
| PHSB 5 | .08 | .3125 (7.938) |
.3125 -24UNF |
.875 (22.23) |
.344 (8.74) |
.437 (11.10) |
.447 (11.35) |
1.812 (46.02) |
.187 (4.75) |
1.312 (34.93) |
.750 (19.05) |
.437 (11.10) |
.437 (11.10) |
.500 (12.70) |
0.20 (0.5) |
5/8 (15.875) |
3760 |
| PHSB 6 | .13 | .3750 (9.525) |
.3750 -24UNF |
.1.000 (25.40) |
.406 (10.31) |
.500 (12.70) |
.517 (13.13) |
2.125 (53.98) |
.250 (6.35) |
1.625 (41.28) |
.937 (23.80) |
.562 (14.27) |
.562 (14.27) |
.687 (17.45) |
0.20 (0.5) |
23/32 (18.256) |
4940 |
| PHSB 7 | .18 | .4375 (11.112) |
.4375 -20UNF |
1.125 (25.58) |
.437 (11.10) |
.562 (14.27) |
.586 (14.88) |
2.375 (60.33) |
.250 (6.35) |
1.812 (46.02) |
1.062 (26.97) |
.625 (15.88) |
.625 (15.88) |
.750 (19.05) |
0.20 (0.5) |
13/16 (20.638) |
5980 |
| PHSB 8 | .29 | .5000 (12.700) |
.5000 -20UNF |
1.312 (33.32) |
.500 (12.70) |
.625 (15.88) |
.698 (17.73) |
2.781 (70.64) |
.250 (6.35) |
2.125 (53.98) |
1.187 (30.15) |
.750 (19.05) |
.750 (19.05) |
.875 (22.23) |
0.20 (0.5) |
15/16 (23.812) |
8330 |
| PHSB 10 | .42 | .6250 (15.875) |
.6250 -18UNF |
1.500 (38.10) |
.562 (14.27) |
.750 (19.05) |
.839 (21.31) |
3.250 (82.55) |
.312 (7.92) |
2.500 (63.50) |
1.500 (38.10) |
.875 (22.23) |
.875 (22.23) |
1.000 (25.40) |
0.20 (0.5) |
1/1.8 (28.575) |
9010 |
| PHSB 12 | .63 | .7500 (19.050) |
.7500 -16UNF |
1.750 (44.45) |
.687 (17.45) |
.875 (22.23) |
.978 (24.84) |
3.750 (95.25) |
.312 (7.92) |
2.875 (73.03) |
1.750 (44.45) |
1.000 (25.40) |
1.000 (25.40) |
1.125 (25.58) |
0.20 (0.5) |
15/1.6 (33.338) |
12660 |
| PHSB 16 | 2.20 | 1.0000 (25.400) |
1.2500 -12UNF |
2.750 (69.85) |
1.000 (25.40) |
1.375 (34.925) |
1.269 (32.23) |
5.500 (139.70) |
.436 (11.07) |
4.125 (104.78) |
2.125 (53.98) |
1.500 (38.10) |
1.500 (38.10) |
1.750 (44.45) |
0.20 (0.5) |
17/8 (47.625) |
19460 |
