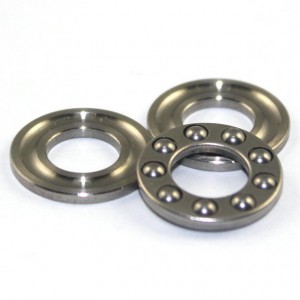

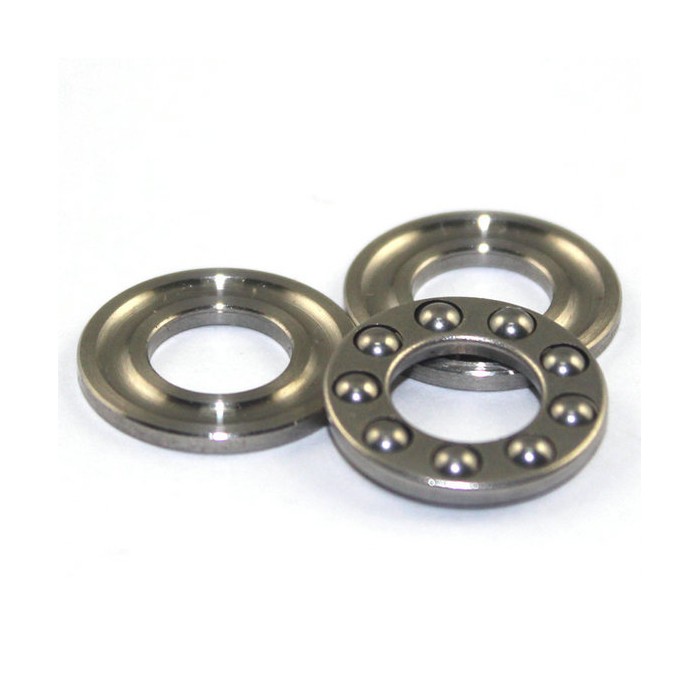

8x16x5mm Small 304 Stainless Thrust Ball Bearing SF8-16

Description:

Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.

The 8x16x5 thrust bearing is used in several RC vehicles and designed to allow movement between parts while maintaining a large axial load, and easily relubed. This thrust bearing by Avid is made of Chrome Steel and the washers are deep grooved on one side for a smooth action.

Specification

Material: 304 Stainless Steel

Metric: 8x16x5mm

Standard: 0.31496" (Inner) x 0.62992" (Outer) x 0.19685" (Width)

Accuracy: ABEC-1

Certification: CE/ROHS

Package: 10pcs into plastic tube / Standard Carton outside

Pallet: Wooden or Iron pallet with plastic film against moisture.
