ORB to AN Male ADAPTORS

These fittings are very hard to find, and very useful.

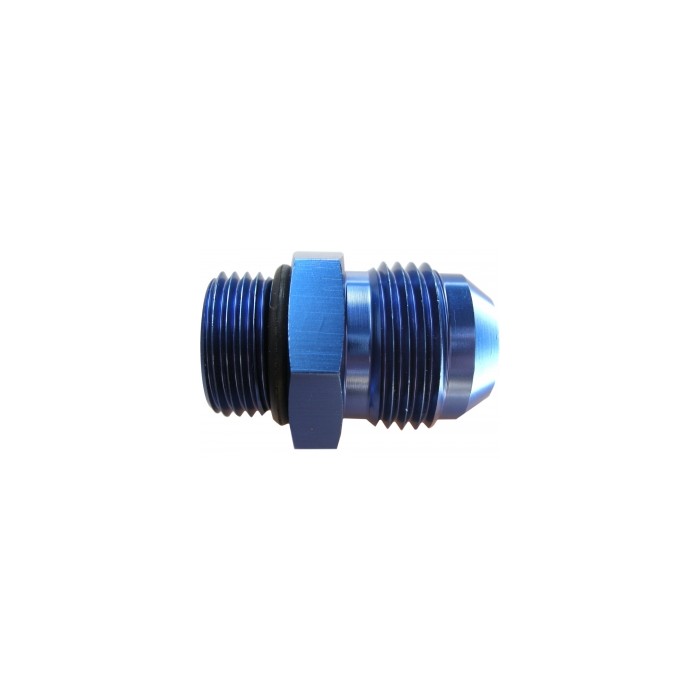

Machined & anodised aluminium adaptors and specially designed for connecting MALE ORB to AN(JIC) threads.(O Ring Boss)
All popular AN/JIC sizes are available.

The ORB side of the fittings have the same thread as AN thread but have a flat seat and a straight cut thread supplied with a washer. The ORB side does not have the 37° cone associated with normal AN threads.
The AN side of this adaptor features the standard 37° cone.

Adaptors include rubber washer.

Thread ORB to AN

ORB-4 to AN-4

ORB-6 to AN-6

ORB-6 to AN-8

ORB-6 to AN-10

ORB-8 to AN-6

ORB-8 to AN-8

ORB-8 to AN-10

ORB-8 to AN-12

ORB-10 to AN-6

ORB-10 to AN-8

ORB-10 to AN-10

ORB-10 to AN-12

ORB-12 to AN-8

ORB-12 to AN-10

ORB-12 to AN-12
