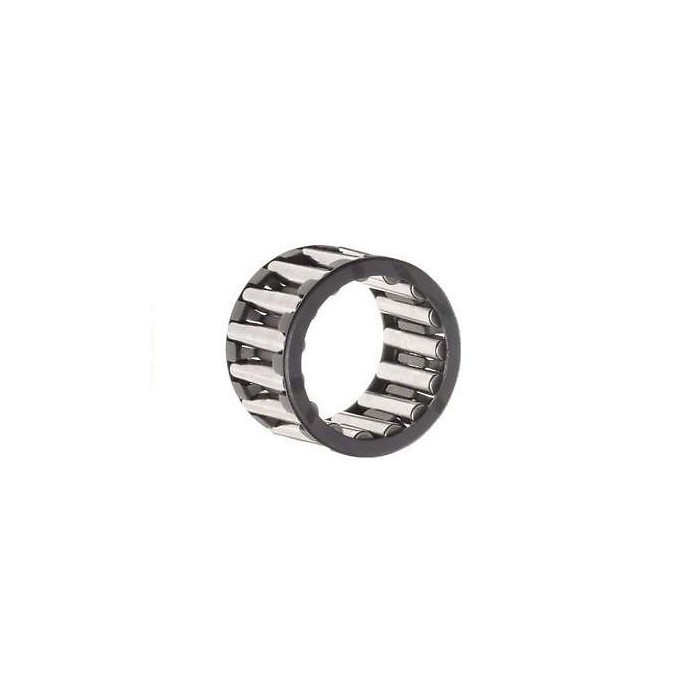

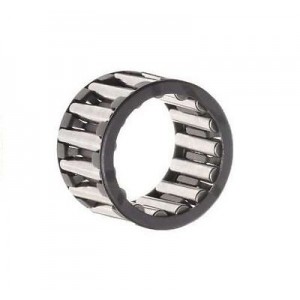

Radial Needle Roller and Cage Assemblies(K,K...ZW,K...D,K...ZWD series )

Radial Needle Roller and Cage Assemblies(K,K...ZW,K...D,K...ZWD series )

we manufacture various kinds of Rod end,Heim Joint, needle roller bearings, thrust bearings, automotive bearings,

low noise deep groove ball bearing and non-s tandard bearing for racing car,motorsport, ATV, quad bike, buggy or

 trikesmotors, lawnmower,oil drillings, automobiles, water pump, power tools,

 large-size agricultural machines and mining machines etc.

 We can take you higher quality products, competitive price and good service.

More details




Shaft diameter BearingDesignation Mass Approx Boundary Dimensions Basic Load Rating  Limiting Speed
Current Orignal Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
5 K5X8X8 TN 29241/5 0.7 5 8 8 2300 1880 37000
K5X8X10 TN 39241/5 0.9 5 8 10 2800 2450 37000
6 K6X9X8 TN 29241/6 0.8 6 9 8 2560 2240 35000
K6X9X10 TN 39241/6 1 6 9 10 3300 3100 35000
K6X10X13 TN 49241/6 1.3 6 10 13 3500 2800 33000
7 K7X10X8 TN 27241/7 0.9 7 10 8 2750 2550 32000
K7X10X10 TN 39241/7 1.1 7 10 10 3350 3400 32000
8 K8X11X8 TN 29241/8 1.1 8 11 8 3000 2900 30000
K8X11X10 TN 39241/8 1.7 8 11 10 3830 3950 30000
K8X11X13 49241/8 1.8 8 11 13 5000 5700 30000
K8X12X10 TN 29242/8 1.3 8 12 10 4900 4600 30000
9 K9X12X10 TN 39241/9 1.5 9 12 10 4200 4700 30000
K9X12X13 TN 49241/9 1.9 9 12 13 5500 6700 30000
10 K10X13X10 TN 39241/10 1.6 10 13 10 4500 5250 27000
K10X13X13TN 39241/10 2.1 10 13 13 6000 7600 27000
K10X13X16TN   2.2 10 13 16 6300 7800 27000
K10X14X10TN 29242/10 2.9 10 14 10 7000 7900 27000
K10X14X13TN 39242/10 4.3 10 14 13 8000 9100 26000
K10X16X12TN 19244/10 3.7 10 16 12 7000 9300 27000
12 K12X15X9 TN   2.7 12 15 9 4120 5210 25000
K12X15X10 TN 39241/12 1.9 12 15 10 4320 5730 25000
K12X15X13 TN 49241/12 2.4 12 15 13 6000 8100 25000
K12X16X8 TN 19242/12 2.9 12 16 8 4200 4700 25000
K12X16X10 TN 29242/12 3.4 12 16 10 6000 6900 25000
K12X16X13 TN 39242/12 3.8 12 16 13 7900 9200 25000
K12X17X13 TN 59242/12 4.4 12 17 13 9300 10000 24000
K12X18X12 TN 19244/12 5 12 18 12 9800 8000 25000
K12X15X20 TN K12X15X20 TN 3.8 12 15 20 8200 12000 23000
14 K14X17X10   4 14 17 10 5100 6800 23000
K14X17X17   6.8 14 17 17 9300 14000 23000
K14X18X10 29242/14 4.8 14 18 10 6800 8300 23000
K14X18X13 39242/14 6.3 14 18 13 8100 9800 23000
K14X18X14   6.8 14 18 14 9200 12000 23000
K14X18X15 49242/14 7.3 14 18 15 10000 13000 23000
K14X18X17 59242/14 8.1 14 18 17 10500 13900 23000
K14X20X12 19243/14 8.6 14 20 12 9900 10500 22000
15 K15X18X14   5.3 15 18 14 7500 11000 23000
K15X18X17   6.4 15 18 17 9600 15900 23000
K15X19X10 29242/15 5.1 15 19 10 7200 9000 22000

K15X19X13 39241/15 7 15 19 13 8300 9800 22000
K15X19X17 59241/15 8.8 15 19 17 10300 15000 22000
K15X19X24 ZW 79241/15 10.5 15 19 24 12800 20100 22000
K15X20X13 29242/15 8.9 15 20 13 9700 11000 22000
K15X21X12 19243/15 10 15 21 12 10000 13000 22000
K15X21X15 39242/15 13 15 21 15 13800 16000 22000
K15X21X21   18.2 15 21 21 18000 24000 22000
