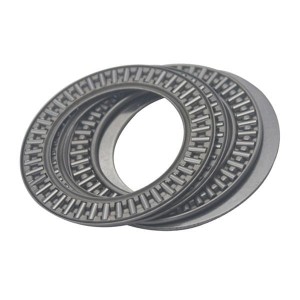

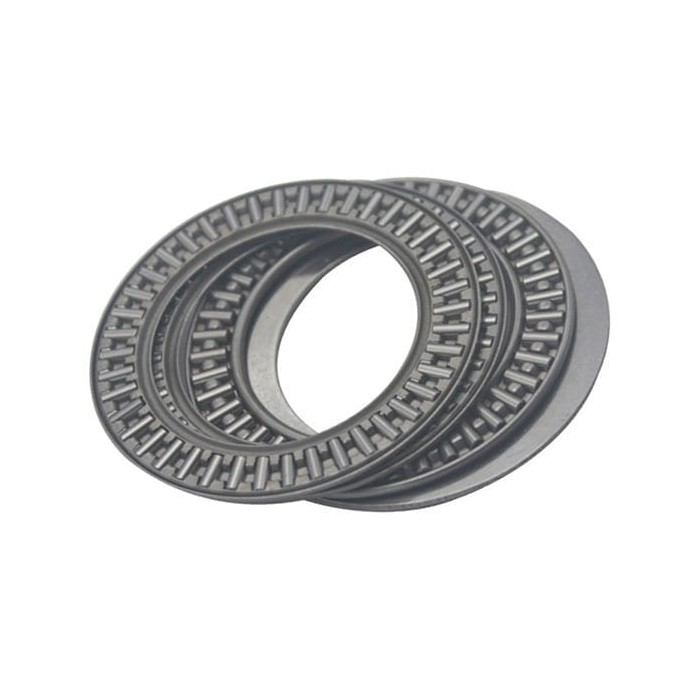

Chinese Thrust Structure Bearing AXK 120155 Thrust Roller Needle Bearing

Chinese Thrust Structure Bearing AXK 120155 Thrust Roller Needle Bearing

Chinese Thrust Structure Bearing AXK 120155 Thrust Roller Needle Bearing

More details


Chinese Thrust Structure Bearing AXK 120155 Thrust Roller Needle Bearing

Different Sizes For Your Reference

shaft bearing dimension(mm)  Basic Load Rating(N) limited speed(rpm) width
dia. type (g)
(mm)   original Inner Outer Width dynamic static grease oil
type Dc1 Dc Dw.
4 AXK 0414 TN   4 14 2 4100 7900 14000 5500 0.7
5 AXK 0515 TN   5 15 2 4000 8500 13000 4800 0.8
6 AXK 0619 TN   6 19 2 6000 12000 12000 4200 1
8 AXK 0821 TN   8 21 2 7100 13500 11000 4000 2
10 AXK 1024   10 24 2 7800 24000 9500 3600 3
12 AXK 1226   12 26 2 8200 26700 7200 3200 3
15 AXK 1528   15 28 2 9500 33000 6500 3000 4
17 AXK 1730   17 30 2 10200 36500 5500 2800 4
20 AXK 2035   20 35 2 11000 43000 5000 2600 5
25 AXK 2542   25 42 2 12500 538000 4500 2300 7
30 AXK 3047   30 47 2 14000 656000 4100 2100 8
35 AXK 3552   35 52 2 15500 770000 3700 2000 10
40 AXK 4060   40 60 3 25000 1100000 3200 1900 16
45 AXK 4565   45 65 3 25800 1250000 3000 1700 18
50 AXK 5070   50 70 3 27600 1370000 2800 1600 20
55 AXK 5578   55 78 3 35000 1950000 2600 1500 28
60 AXK 6085   60 85
