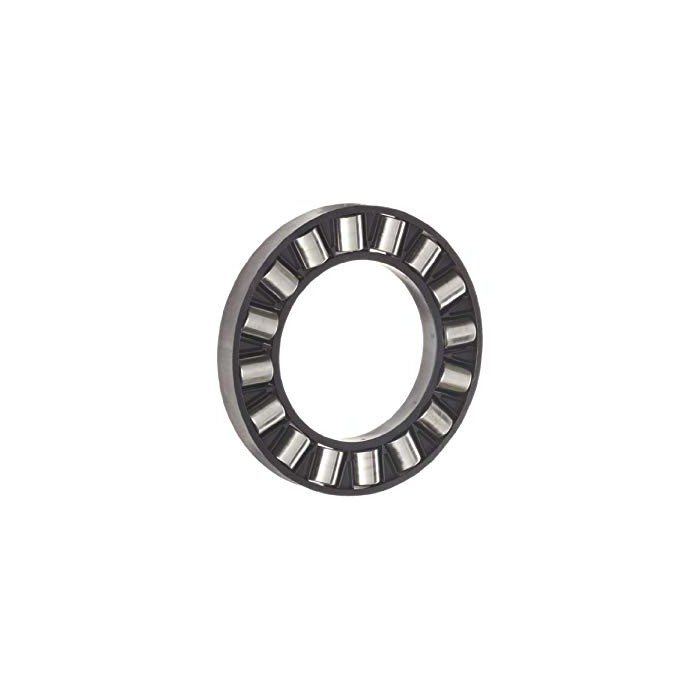

K81105TN Thrust Needle Bearing

K81105TN Thrust Needle Bearing

K81105TN Thrust Needle Bearing,

K81105TN Bearing,

Axial Cylindrical Thrust Roller Bearings

More details


K81105TN Thrust Needle Bearing,K81105TN Bearing,Axial Cylindrical Thrust Roller Bearings

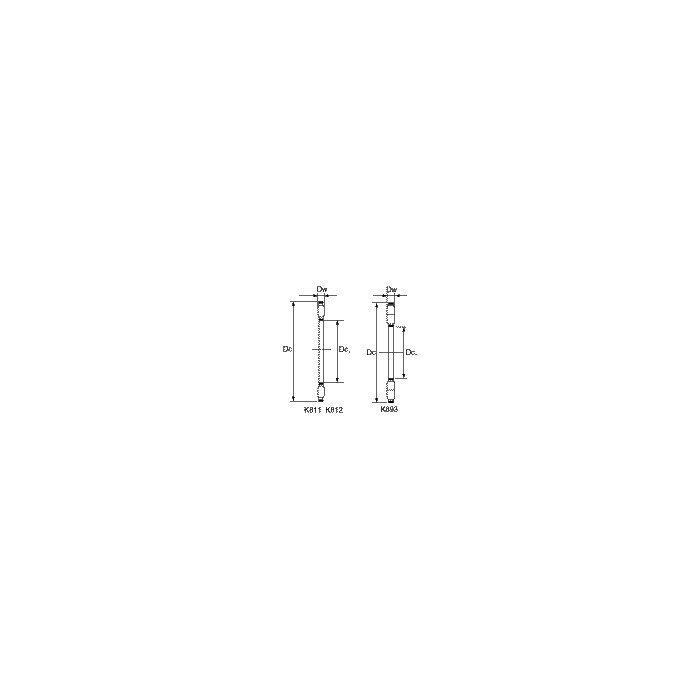

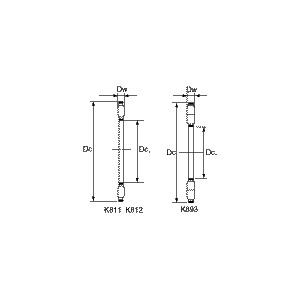

Shaft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating    Limitng Speed
Dc1   Dc Dw Cr Dynamic Cor Static Oil
mm g mm N rpm
15 K81102TN 6 15 28 3.5 13500 28000 11000
17 K81103TN 9 17 30 3.5 14800 32900 10000
20 K81104TN 13 20 35 4.5 23700 52600 8500
25 K81105TN 15 25 42 5 32900 70000 7000
30 K81106TN 17 30 47 5 34800 85000 6000
K81206TN 33 30 52 7.5 63500 139000 6000
K89306TN 40 30 60 5.5 67900 188500 5000
