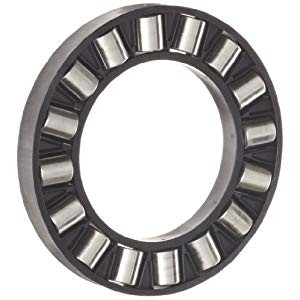

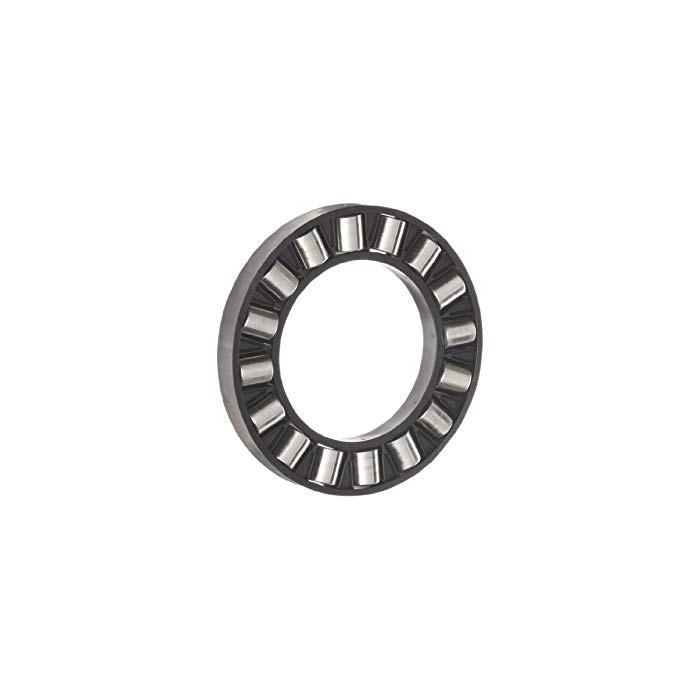

K87409TN Thrust Needle Bearing

K87409TN Thrust Needle Bearing

K87409TN Thrust Needle Bearing,

K87409TN Bearing,

Axial Cylindrical Thrust Roller Bearings

More details


K87409TN Thrust Needle Bearing,K87409TN Bearing,Axial Cylindrical Thrust Roller Bearings

haft Diameter Bearing Designation Mass Boundary Dimensions Basic Load Rating    Limitng Speed
Dc1   Dc Dw Cr Dynamic Cor Static Oil
mm g mm N rpm
15 K81102TN 6 15 28 3.5 13500 28000 11000
17 K81103TN 9 17 30 3.5 14800 32900 10000
20 K81104TN 13 20 35 4.5 23700 52600 8500
25 K81105TN 15 25 42 5 32900 70000 7000
30 K81106TN 17 30 47 5 34800 85000 6000
K81206TN 33 30 52 7.5 63500 139000 6000
K89306TN 40 30 60 5.5 67900 188500 5000
35 K81107TN 19 35 52 5 38500 100900 5500
K81207TN 43 35 62 7.5 79800 198100 4900
K89307TN 53 35 68 6 79800 236500 4600
K89407TN 111 35 80 9 149000 425000 4200
40 K81108TN 31 40 60 6 55000 147500 4800
K81208TN 81 40 68 9 106500 264600 4400
K89308TN 98 40 78 7 119000 384500 4000
K87408 127 40 90 6.5 127000 478000 3600
K89408TN 200 40 90 10 199000 579500 3700
45 K81109TN 35 45 65 6 58500 162500 4400
K81209TN 85 45 73 9 104500 264100 4000
K89309TN 121 45 85 7.5 138500 439000 3600
K87409 174 45 100 7 153500 559800 3200
K87409TN 262 45 100 11 238600 699200 3300
50 K81110TN 38 50 70 6 60700 167000 4000
K81210TN 98 50 78 9 106000 309000 3700
K89310TN 175 50 95 8 166500 557900 3200
K87410TN 256 50 110 8 199600 738000 2900
K89410TN 360 50 110 12 280500 899000 3000
