Rod End Bearing SA...TK

Rod End Bearing SA...TK

Maintenance free rod end bearing, body is made of carbon steel, zinc
plated; Bushing’s made of bronze, with antifriction PTFE composite
material; Ball’s made of carbon chromium steel, hardened and hard
chrome plated.

SA5T/K rod end,SA6T/K rod end,rod end SA8T/K,rod end SA10T/K,SA12T/K rod end,rod end SA14T/K,rod end SA16T/K,rod end SA18T/K,SA20T/K rod end

More details


Maintenance free rod end bearing, body is made of carbon steel, zinc

plated; Bushing’s made of bronze, with antifriction PTFE composite
material; Ball’s made of carbon chromium steel, hardened and hard
chrome plated.

SA5T/K rod end,SA6T/K rod end,rod end SA8T/K,rod end SA10T/K,SA12T/K rod end,rod end SA14T/K,rod end SA16T/K,rod end SA18T/K,SA20T/K rod end

Sliding contact
surfaces:		 Steel/PTFE composite material

Bearing
Number		   Load
ratings KN		 ≈a° Unit
Weight
(kg)

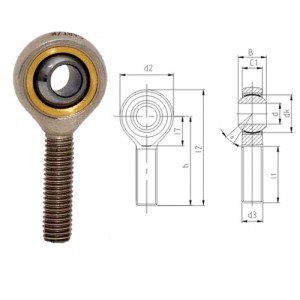

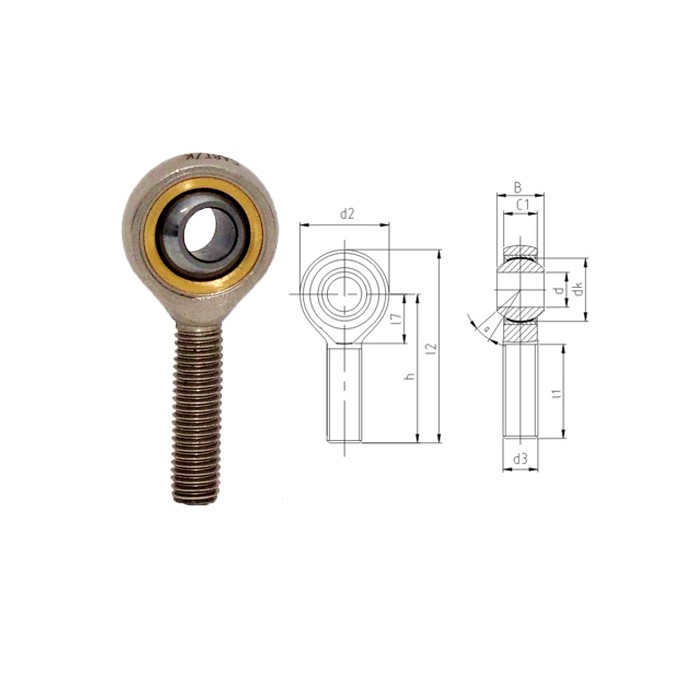

Dimensions(mm)
d B dk C1 d2 d3 h l1 l2 l7 Dynamic Static
SA5T/K 5 8 11.11 7.5 18 M5X0.8 33 19 42 * 3.6 3.9 4 0.013
SA6T/K 6 9 12.7 7.5 20 M6X1 36 21 46 * 4.7 5.2 9 0.02
SA8T/K 8 12 15.8 9.5 24 M8X1.25 42 25 54 * 7.6 8.2 12 0.038
SA10T/K 10 14 19.05 11.5 30 M10X1.5 48 28 63 * 12 15 12 0.071
M10X1.25
SA12T/K 12 16 22.23 12.5 34 M12X1.75 54 32 71 * 14 19 12 0.12
M12X1.25
SA14T/K 14 19 25.4 14.5 38 M14X2 60 36 79 18 19 24 14 0.17
M14X1.5
SA16T/K 16 21 28.58 15.5 42 M16X2 66 37 87 23 23 29 14 0.23
M16X1.5
SA18T/K 18 23 31.75 17.5 46 M18X1.5 72 41 95 25 29 34 13 0.31
SA20T/K 20 25 34.93 18.5 50 M20X1.5 78 45 103 27.5 34 40 14 0.4
SA22T/K 22 28 38.1 21 54 M22X1.5 84 48 112 30.5 42 50 14 0.49
SA25T/K 25 31 42.86 23 60 M24X2 94 55 124 33 52 57 14 0.65
SA30T/K 30 37 50.8 27 70 M30X2 110 62 136 33 73 77 15 1.1
SA35T/K 35 43 57.15 28 80 M36X2 125 77 165 42 110 116 17 1.1

Remark:
1. The listed load rating,
unit weight is for reference.
2. For left-hand thread, suffix "L" is added to bearing number and thread sign,
e.g. SIL20T/K M20X1.5L-6g
