GEFZ...C Spherical Plain Bearings

GEFZ...C Spherical Plain Bearings

GEFZ...C Spherical Plain Bearings



Yousen bearing Radial Spherical Plain Bearing includes requiring maintenance (steel–on-steel) & maintenance-free. Bore diameter is 4-300mm (metric and Inch dimensions are both available). Different sliding contact surface combinations with inner rings and out rings can be made of different materials.

More details




Bearing structure and applications same as GE..C, but in inch dimensions.



Sliding contact surfaces:    Steel / PTFE composite material

Bearing Code
Diemensions(mm) Load

ratings KN

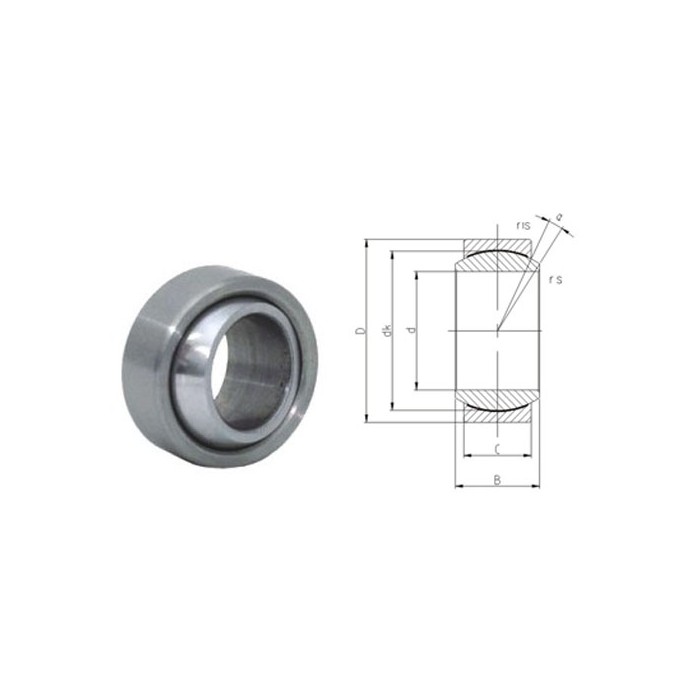

d D B C dk rs rls ≈a°   Weight
min min Dynamic ≈Kg
GEFZ4C 4.83 14.29 7.14 5.54 10.31 0.3 0.38 11 5.1 0.006
GEFZ6C 6.35 16.67 8.17 6.35 12.7 0.3 0.56 13.5 7.2 0.01
GEFZ7C 7.94 19.05 9.53 7.14 14.27 0.3 0.81 12 9.1 0.014
GEFZ9C 9.53 20.64 10.31 7.92 16.66 0.3 0.81 10 11.8 0.018
GEFZ11C 11.11 23.02 11.1 8.71 17.45 0.3 0.81 8 13.6 0.021
GEFZ12C 12.7 25.4 12.7 9.91 20.65 0.3 0.81 9.5 18.4 0.029
GEFZ14C 14.29 27.78 14.27 11.1 23.01 0.3 0.81 9.5 23 0.042
GEFZ15C 15.88 30.16 15.88 12.7 25.4 0.3 0.81 9.5 29 0.053
GEFZ19C 19.05 36.51 19.05 15.06 30.15 0.3 1.12 9 40.8 0.094
GEFZ22C 22.23 39.69 22.23 17.86 33.32 0.6 1.12 9.5 53.5 0.119
GEFZ25C 25.4 44.45 25.4 20.24 38.1 0.6 1.12 10 69.4 0.173
Remark:
1.The listed load rating, unit weight is for reference.
