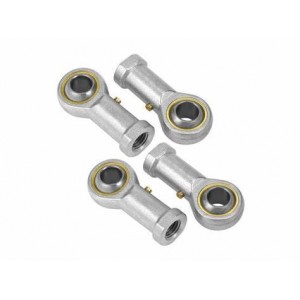

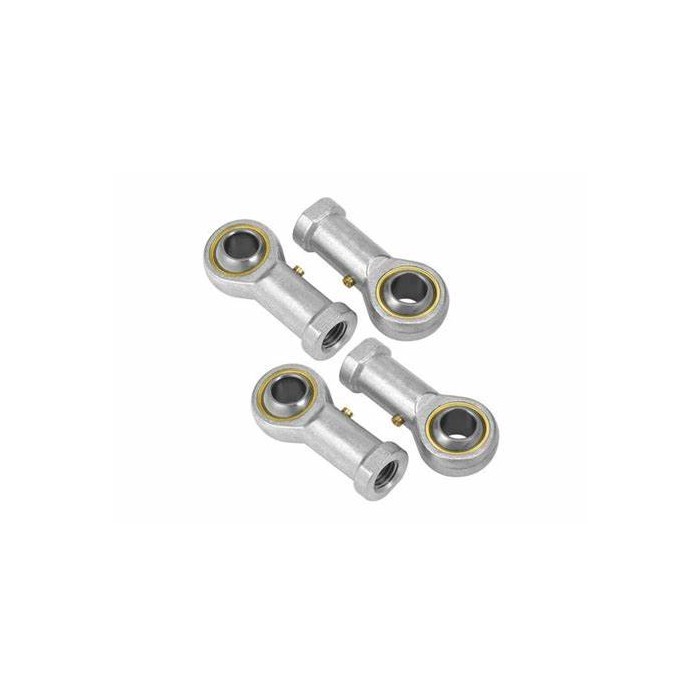

PHS rod end Bearing

PHS rod end Bearing

PHS rod end Bearing

PHS5, PHS6, PHS8 rod end, PHS10 rod end, PHS10-1, PHS12 rod end, PHS12-1 ... PHS30 rod end, PHS30-1.

If you are going to import phs bearing in stock or you want to check the price with one China phs bearing manufacturer, supplier and factory, please feel free to contact Yousen bearing.

Rod ends offer misalignment capabilities for linkages used in construction equipment, trucks, buses, off-hwy equipment, recreational vehicles, lawn and garden, marine, racing and agriculture.


More details


PART NO.

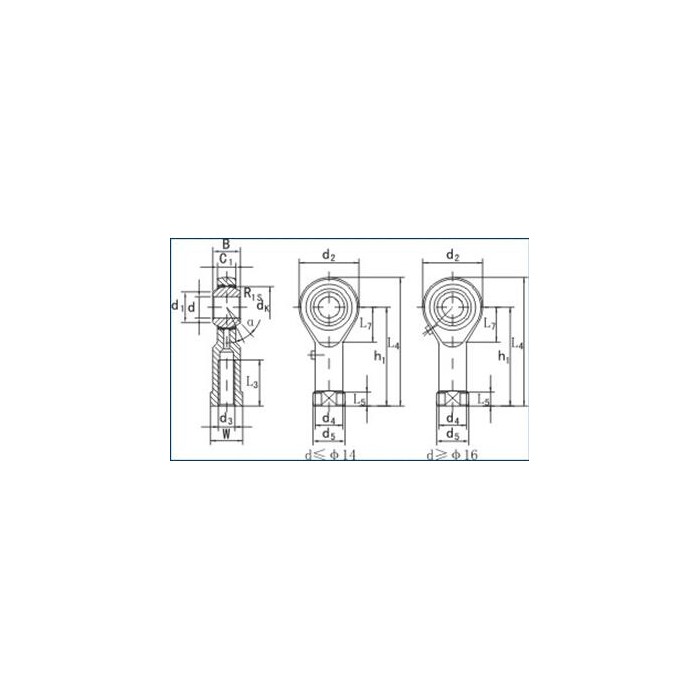

DIMENSIONS    (mm)

  LOAD RATINGS   (kn)

WEIGHT (kg)

d

d3

B

C1

L3

W

d2

d1

h1

L4

L5

d4

d5

dk

a

Dynamic

Static


6H

min








≈

Cr

Cor

PHS5

5

M5x0.8

8

6

10

9

16

7.7

27

35

4

8.5

11

11.1

13

3.25

5.7

0.016

PHS6

6

M6x1.0

9

6.75

12

11

18

8.96

30

39

5

10

13

12.7

13

4.3

7.2

0.022

PHS8

8

M8x1.25

12

9

16

14

22

10.4

36

47

5

12.5

16

15.9

14

7.2

11.6

0.047

PHS10

10

M10x1.5

14

10.5

20

17

26

12.9

43

56

6.5

15

19

19.1

13

10

14.5

0.077

PHS10-1

10

M10x1.25

14

10.5

20

17

26

12.9

43

56

6.5

15

19

19.1

13

10

14.5

0.077

PHS12

12

M12x1.75

16

12

22

19

30

15.4

50

65

6.5

17.5

22

22.2

13

13.4

17

0.1

PHS12-1

12

M12x1.25

16

12

22

19

30

15.4

50

65

6.5

17.5

22

22.2

13

13.4

17

0.1

PHS14

14

M14x2.0

19

13.5

25

22

34

16.9

57

74

8

20

25

25.4

16

17

24

0.16

PHS14-1

14

M14x1.5

19

13.5
