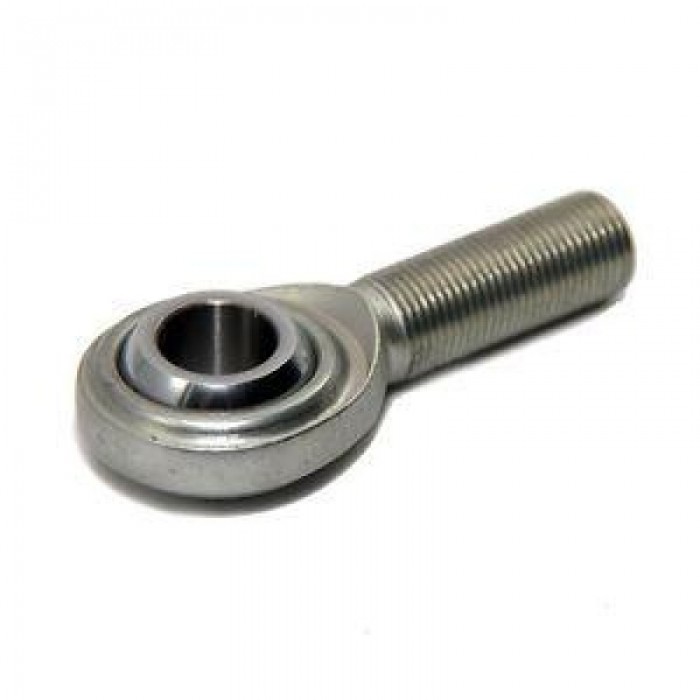

CM,CM T rod end

CM,CM T rod end
CM3, CM3T,CM4,CM4T,CM5,CM5T,CM6,CM6T,CM7,
CM7T,CM8,CM8T,CM10,CM10T,CM12,CM12T rod end,heim joint
Description
2-Piece rod end, body is made of carbon steel, zinc plated, with male or female thread, pressed around inner ring; Inner ring is made of carbon chromium steel, spherical surface harden

More details


2-Piece rod end, body is made of carbon steel, zinc plated, with male or female
thread, pressed around inner ring; Inner ring is made of carbon chromium steel,
spherical surface hard chrome plated. Inch dimensions.

Sliding contact
surfaces:		   CM.. Steel/Steel CM..T Steel/PTFE
composite material

Bearing

Number

 Load
ratings
KN		 ≈a° Unit
Weight
(kg)

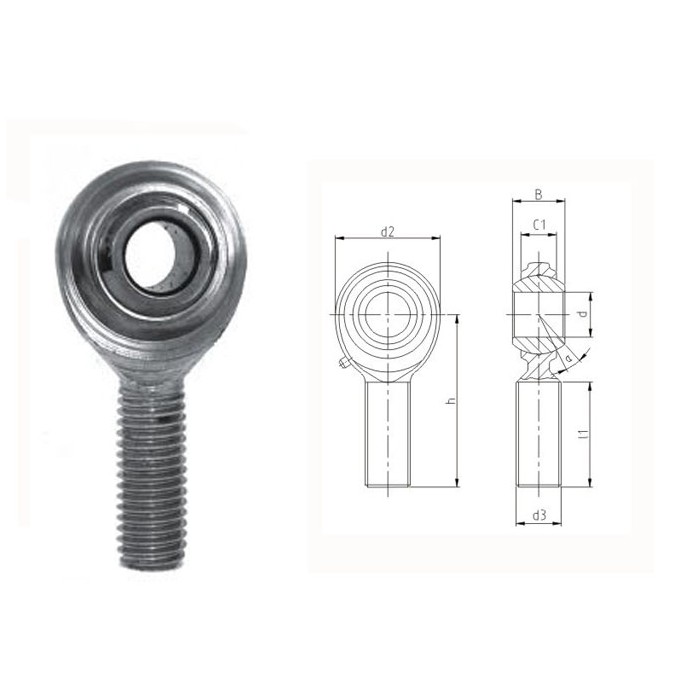

Dimensions in Inch
d d2 B C1 BALL h d3
UNF/2A		 l1
CM3 0.19 0.625 0.312 0.234 0.437 1.25 10-32 0.75 9.25 17 0.03
CM3T
CM4 0.25 0.75 0.375 0.25 0.5 1.56 2001/4/28 1 14.3 21 0.04
CM4T
CM5 0.3125 0.875 0.437 0.312 0.625 1.875 5/16-24 1.25 17.01 17 0.07
CM5T
CM6 0.375 1 0.5 0.359 0.719 1.938 2003/8/24 1.25 22.63 19 0.11
CM6T
CM7 0.4375 1.13 0.562 0.406 0.812 2.125 7/16-20 0.375 28.4 18 0.15
CM7T
CM8 0.5 1.31 0.625 0.453 0.937 2.438 2001/2/20 1.5 40.45 17 0.24
CM8T
CM10 0.625 1.5 0.75 0.484 1.125 2.625 2005/8/18 1.625 43.21 22 0.36
CM10T
CM12 0.75 1.75 0.875 0.593 1.312 2.875 2003/4/16 1.75 63.2 18 0.57
CM12T
Remark:
1. The listed load rating, unit weight is for reference.
2. For left-hand thread, suffix "L" is added to bearing number and thread
sign, e.g. CML10
